تفاصيل المنتج:
|
| التيار المسموح به: | 300 أ | استشعار النطاق الحالي: | ±600 أمبير |
|---|---|---|---|
| جهد إمداد الطاقة: | 12 - 18V DC | الدقة: | ± 0.5٪ |
| وقت الاستجابة: | 0.5μs | عرض النطاق: | DC - 150 كيلو هرتز |
| إبراز: | CSNJ481 Current Sensors,Hall Effect Current Sensor,Magnetoresistive Current Sensor,Hall Effect Current Sensor,Magnetoresistive Current Sensor |
||

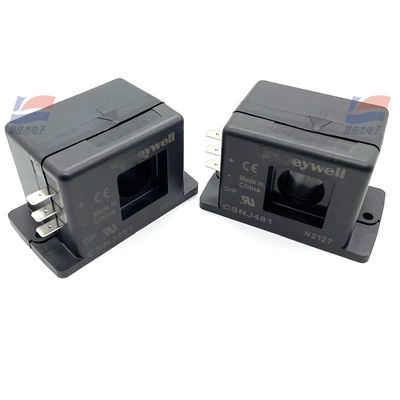

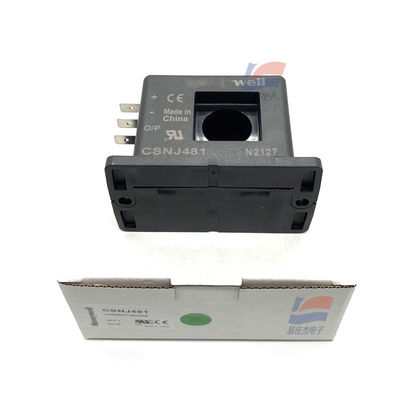

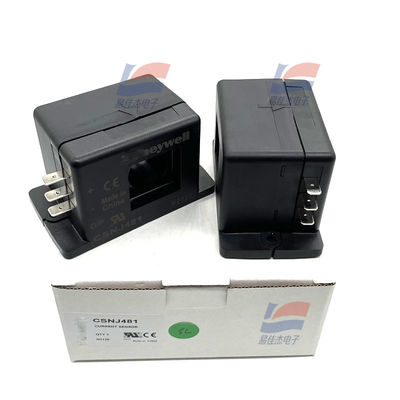

CSNJ481 Closed-loop Current Sensor
Electrical Parameters:
Performance Parameters:
Temperature Parameters:
Mechanical & Packaging Parameters:
Additional Parameters:
| Rated Current | 300A |
| Sensing Current Range | ±600A |
| Power Supply Voltage | 12 - 18V DC |
| Output Type | Ratio, Current |
| Accuracy | ±0.5% |
| Response Time | 0.5μs |
| Bandwidth | DC - 150kHz |
| Operating Temperature Range | -40°C to 85°C |
| Mounting Type | Through Hole |
| Package/Case | Module, Single Pass-Through |
| Number of Pins | 3 |
| Package Material | Plastic/Epoxy |
