تفاصيل المنتج:
|
| نوع الضغط: | فراغ ، مقياس ، تفاضل | ضغط التشغيل: | 10 في H2O |
|---|---|---|---|
| الدقة: | 1٪ | نوع الإخراج: | التناظرية |
| إبراز: | board mount pressure sensor,compensated vacuum pressure sensor,electronic pressure sensor XPCL10DTH,compensated vacuum pressure sensor,electronic pressure sensor XPCL10DTH |
||

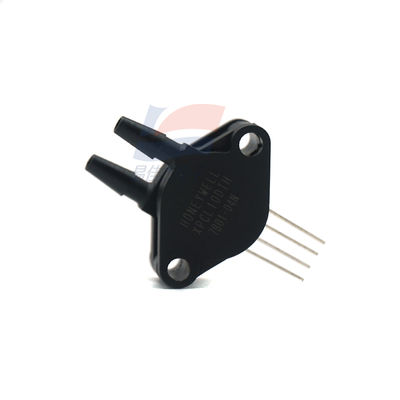

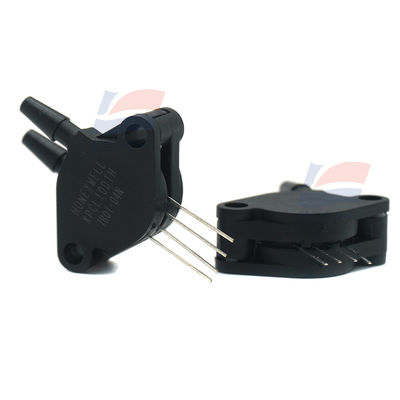

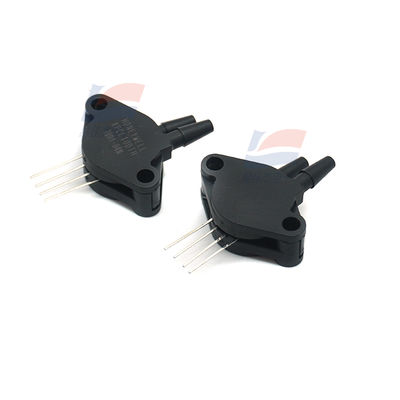

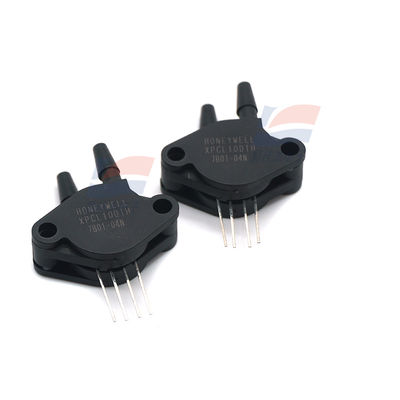

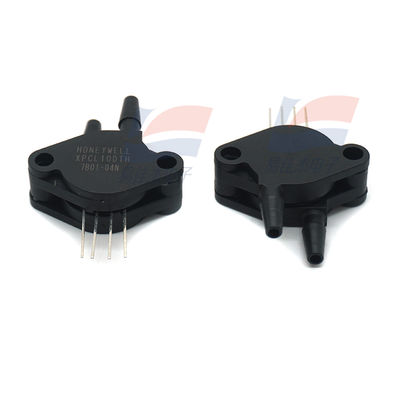

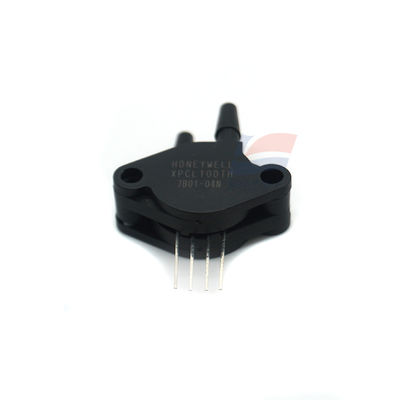

XPCL10DTH Board Mount Pressure Sensors Compensated Vacuum Type
The XPC/XPCL Series and XPXL Series sensors integrate silicon micromachined sensing technology, temperature compensation, and calibration in a complete family of low-cost packages. This series offers a cost-effective solution for design requirements.
These piezoresistive pressure sensors use micromachined silicon chips mounted on ceramic and protected with a plastic
cap. Several tube arrangements with nylon housings are available for various pressure applications.
FEATURES
*Low cost, small size
*Temperature compensated
*Zero and span calibrated
*Millivolt output
*Differential, gage and absolute pressure
*Constant voltage excitation
*High impedance - low current
|
Mounting Style
|
Through Hole |
| Operating Supply Voltage | 12 V |
| Port Type | Dual Radial Barbless |
| Package / Case | SIP-4 |
| Minimum Operating Temperature | - 25℃ |
| Maximum Operating Temperature | + 85℃ |
| Supply Voltage - Max | 16 V |
| Supply Voltage - Min | 3 V |
