تفاصيل المنتج:
|
| مصدر التيار: | 2.2 ~ 5.5V | نطاق القياس: | -40 ~ 120 درجة مئوية ، 0 ~ 100 ٪ rh |
|---|---|---|---|
| دقة القياس: | ± 0.3 درجة مئوية (نموذجية) ، ± 2 ٪ RH (25 درجة مئوية) | القرار: | 0.01'C ، 0.024 ٪ RH |
| إبراز: | AHT20-F digital temperature sensor,integrated humidity sensor chip,digital output temperature sensor,integrated humidity sensor chip,digital output temperature sensor |
||

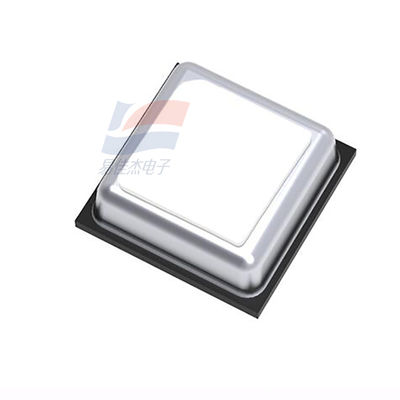

AHT20-F Temperature And Humidity Sensor Chip Integrated Digital Output
AHT20-F is an integrated temperature and humidity sensor, which is covered with a carefully selected PTFE waterproof and breathable membrane, which can effectively prevent the sensor opening from contacting water vapor and dust, ensuring that AHT20-F is not polluted, so that the sensor maintains a high sensitivity and obtains more lasting high-precision measurements, thereby extending the service life of the sensor. Under the protection of the waterproof and breathable membrane, AHT20-F has a higher cost-effectiveness and can adapt to more harsh environments, such as high temperature, high humidity and dusty working environments.
| Repeatability | ±0.1°C, ±0.1%RH |
| Response time (t63%) | 5~30s (temperature), 8~30s (humidity) |
| Long-term drift | <0.1°C/yr, <1%RH/yr |
