تفاصيل المنتج:
|
| نطاق كشف التركيز: | 21 ٪ ～ 95.6 ٪ | قرار التركيز: | 0.1٪ |
|---|---|---|---|
| دقة الكشف عن التركيز: | 0 ～ 15l/min | دقة معدل التدفق: | 0.1 لتر/دقيقة |
| إبراز: | Ultrasonic oxygen sensor medical,High precision oxygen sensor,Medical gas sensor ultrasonic,High precision oxygen sensor,Medical gas sensor ultrasonic |
||

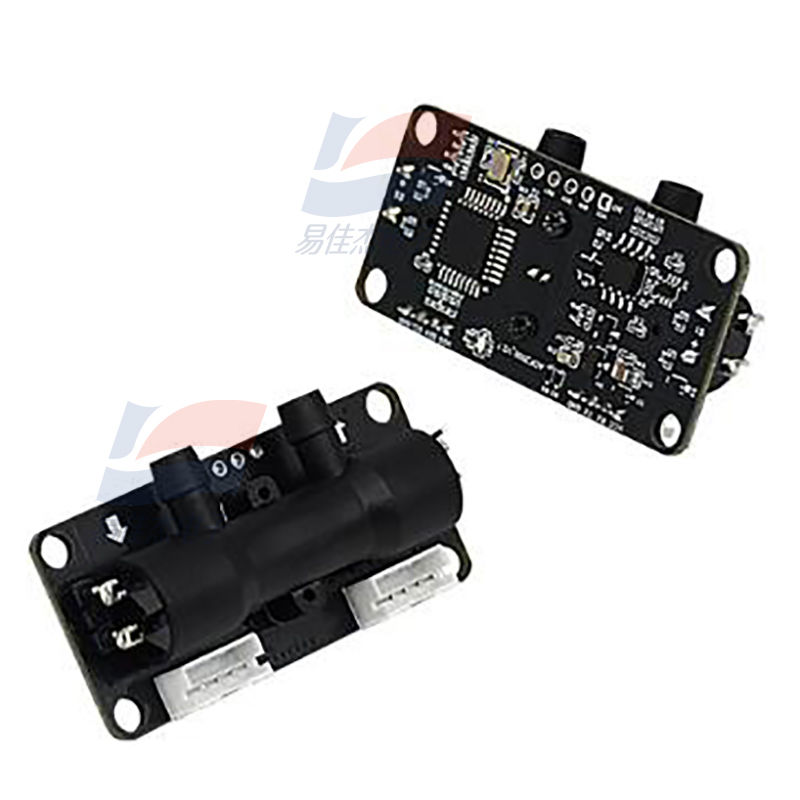

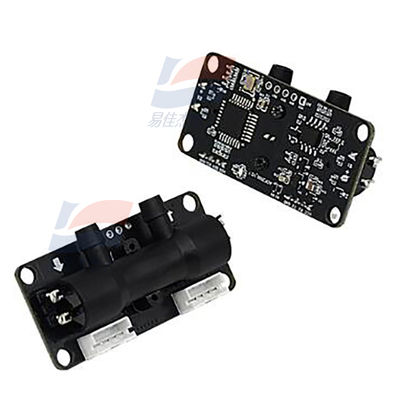

AOF2000 Ultrasonic Oxygen Sensor High precision For Medical Use
AOF2000 is a cost-effective oxygen concentration detection sensor. It uses the principle of ultrasonic propagation to achieve accurate measurement of oxygen concentration, flow rate and temperature, and outputs the measured value in real time. It has the characteristics of full-scale temperature compensation, low cost, high reliability, easy to use, strong anti-interference ability, and no need for regular calibration. Compared with traditional electrochemical sensors, the service life of AOF2000 is greatly extended. During the entire life cycle, it can automatically calibrate without maintenance, bringing great convenience to users. Its oxygen concentration detection range is extremely wide (0%~100%), especially suitable for the detection of oxygen concentration of 21%~95.6% in oxygen concentrators, which is an ideal choice for oxygen concentrator OEMs.
Ultrasonic oxygen sensor
* Ultrasonic propagation principle
* High precision
* Long life
* Strong anti-interference ability
* Ultra-small size
* Sensitive response
* Simultaneous detection of concentration and flow
* Standard serial communication
| Warm-up time | <10s |
| Operating temperature | 5～55℃ |
| Storage temperature | -5~60℃ |
| Operating voltage DC | 5V~12V(±0.25V) |
| Operating current | ≤40mA |
| Operating power | ≤200mW |
| Appearance size | L50mm×W24mm×H13.6mm |
| Sensor weight | 10.3±1g |
