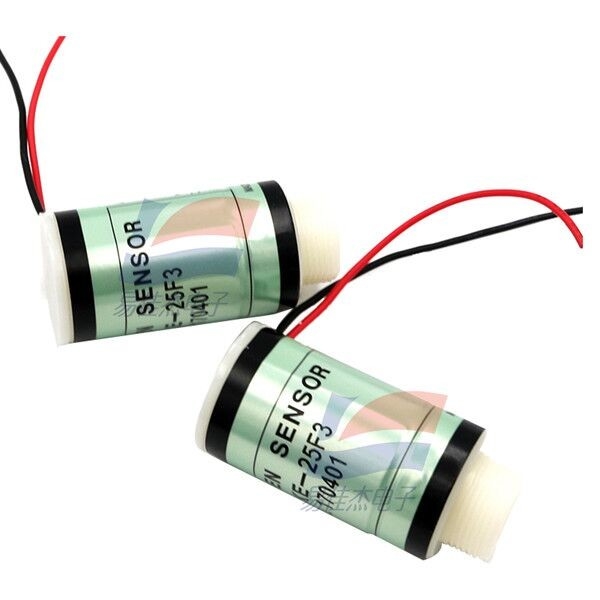

Oxygen Sensor KE-25F3 KE-25F3LF for Medical Field

شهادة
الصين ShenzhenYijiajie Electronic Co., Ltd. الشهادات
الصين ShenzhenYijiajie Electronic Co., Ltd. الشهادات
ابن دردش الآن

Oxygen Sensor KE-25F3 KE-25F3LF for Medical Field

Oxygen Sensor KE-25F3 KE-25F3LF for Medical Field
Oxygen Sensor KE-25F3 KE-25F3LF for Medical Field Oxygen Sensor KE-25F3 KE-25F3LF for Medical Field

صورة كبيرة :  Oxygen Sensor KE-25F3 KE-25F3LF for Medical Field

تفاصيل المنتج:
مكان المنشأ: اليابان
اسم العلامة التجارية: IRS4
رقم الموديل: KE-25F3
شروط الدفع والشحن:
الحد الأدنى لكمية: قطعة واحدة
الأسعار: قابل للتفاوض
تفاصيل التغليف: العبوة القياسية
وقت التسليم: 5-8 أيام عمل
شروط الدفع: L/C، D/A، D/P، T/T، Western Union، MoneyGram
القدرة على العرض: 5000 قطعة

Oxygen Sensor KE-25F3 KE-25F3LF for Medical Field

وصف
الدقة: ± 1 ٪ (كامل - المقياس) نطاق درجة حرارة العمل: 5 - 40 درجة مئوية
نطاق الرطوبة النسبية: 10 - 90% رطوبة نسبية وقت الاستجابة: 14 ± 2 s
البعد: φ28 × 47.3 مم الوزن: 24 جرام
إبراز:

medical oxygen sensor KE-25F3,KE-25F3LF oxygen gas sensor,medical field oxygen sensor

,

KE-25F3LF oxygen gas sensor

,

medical field oxygen sensor



                                             Oxygen Sensor KE-25F3 KE-25F3LF for Medical Field





Product Features:

  • The threaded top design makes it convenient to install and fix.
  • It has a long service life of 5 years, providing stable performance over an extended period.
  • The output signal is stable, and there is no need for pre - heating, which simplifies the use process.
  • It is hardly affected by common gases such as CO₂, CO, H₂S, NOₓ, and H₂, ensuring high - accuracy oxygen measurement.

Applications:

  • Medical Field: Used in medical anesthetic instruments, respirators, and oxygen - enrichers to monitor oxygen concentration.
  • Biotechnology: Applied in oxygen incubators to maintain the appropriate oxygen environment for biological experiments.
  • Food Industry: Used in food packaging and refrigeration to control the oxygen content and prolong the shelf - life of food. Also used in greenhouses to optimize the growth environment of plants.
  • Safety Field: Installed in oxygen detectors and fire detectors to ensure the safety of the environment. It can also be used in air - conditioners to monitor and adjust the oxygen content in the air.





Accuracy ±1% (full - scale)
Operating Temperature Range 5 - 40°C
Storage Temperature Range - 20 - 60°C
Relative Humidity Range 10 - 90% RH (non - condensing)
Atmospheric Pressure Range 811 hPa - 1216 hPa
Response Time 14 ± 2 s
Initial Output Voltage under Standard Test Conditions 10.0 - 15.5 mV
Life Expectancy 5 years
Interface Type Threaded interface (M16x1)6
Sensing Principle Galvanic cell
Dimensions φ28 × 47.3 mm
Weight Approximately 24 g
Output Signal Type Analog type4
Power Requirement No external power supply required



Oxygen Sensor KE-25F3 KE-25F3LF for Medical Field 0
