تفاصيل المنتج:
|
| نطاق التركيز: | 21 ٪ (في الهواء) ～ 95.6 ٪ | قرار التركيز: | 0.1٪ |
|---|---|---|---|
| دقة التركيز: | ± 1.5 ٪ FS | مجموعة تدفق: | 0 ～ 10l/min |
| إبراز: | Ultrasonic oxygen gas sensor,High accuracy O2 sensor,12V DC oxygen sensor,High accuracy O2 sensor,12V DC oxygen sensor |
||

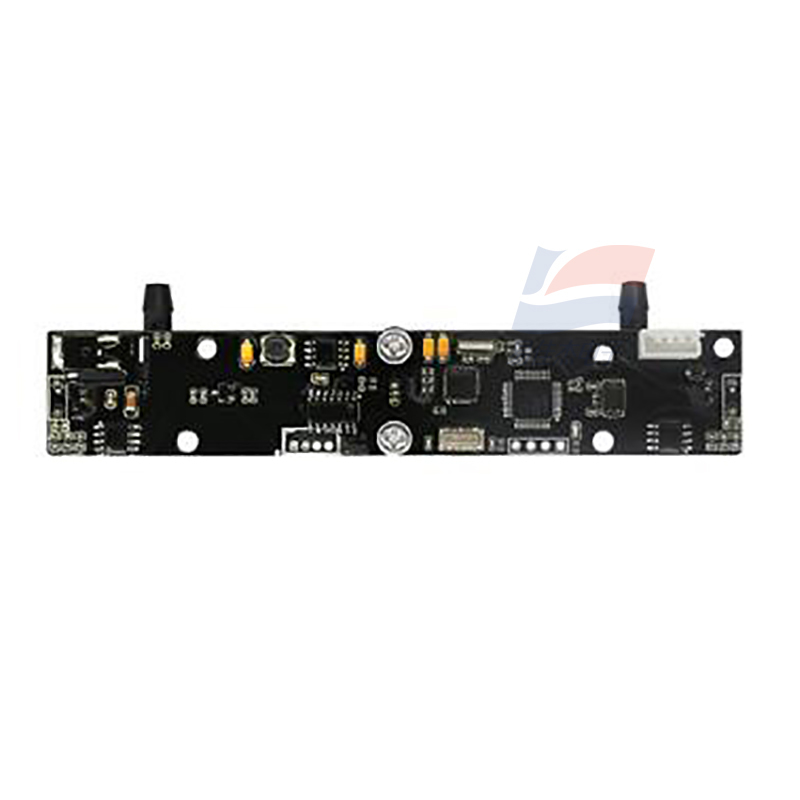

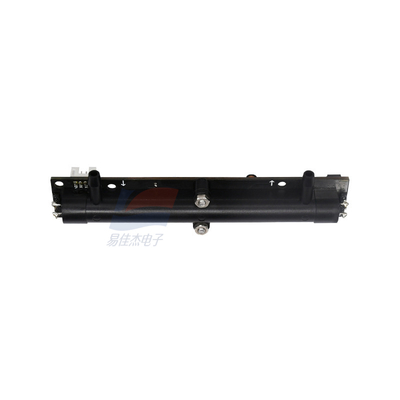

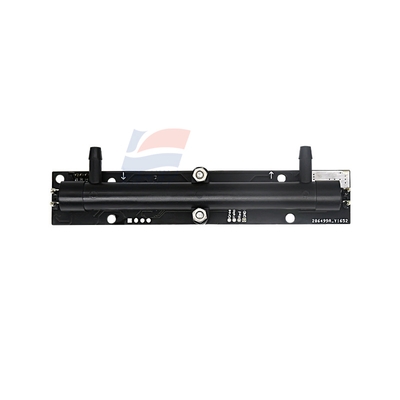

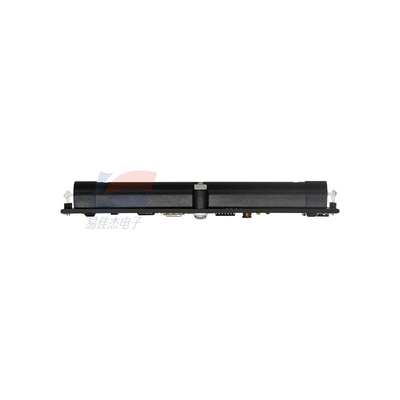

AOF1000 Ultrasonic Oxygen Gas O2 Sensor High Accuracy DC 12V Power Supply
Ultrasonic Oxygen Sensor
* Ultrasonic principle
* High accuracy
* Strong anti-interference ability
* DC 12V power supply
* Simultaneous detection of concentration and flow
Product Summary
AOF1000 uses the principle of ultrasonic to detect oxygen concentration, flowandtemperature, and directly outputs the measured value. It has full-range temperaturecompensation, low cost, high reliability, easy to use, and anti-interferenceability.Strong, no need for regular calibration.
Applications
The ultrasonic oxygen sensor can be widely used in medical treatment, industry, chemical industry, mining and food industry.
Specification:
| Preheat time | 10s |
| Communication | UART/9600bps |
| Working temperature | 5～55℃ |
| Power supply | DC 12V |
| Dimension | 120mm×30.8mm×20.6mm |
| Weight | 22.7g |
| Material | PBT |
