تفاصيل المنتج:
|
| Measurement Range: | 0 ppm to 80 ppm C3H3N | Filter: | None |
|---|---|---|---|
| Sensitivity: | 250 nA/ppm ±100 nA/ppm | Response Time (T90): | <120 seconds at 20°C |
| Baseline Offset: | -0.5 ppm to +1 ppm acrylonitrile equiv | Recommended Load Resistor: | 10 Ω |
| إبراز: | YJJ 4AN gas sensor,acrylonitrile gas detector,AI200-800 gas sensor part,acrylonitrile gas detector,AI200-800 gas sensor part |
||
Product Description:

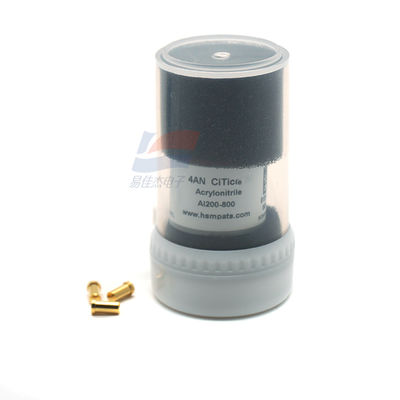

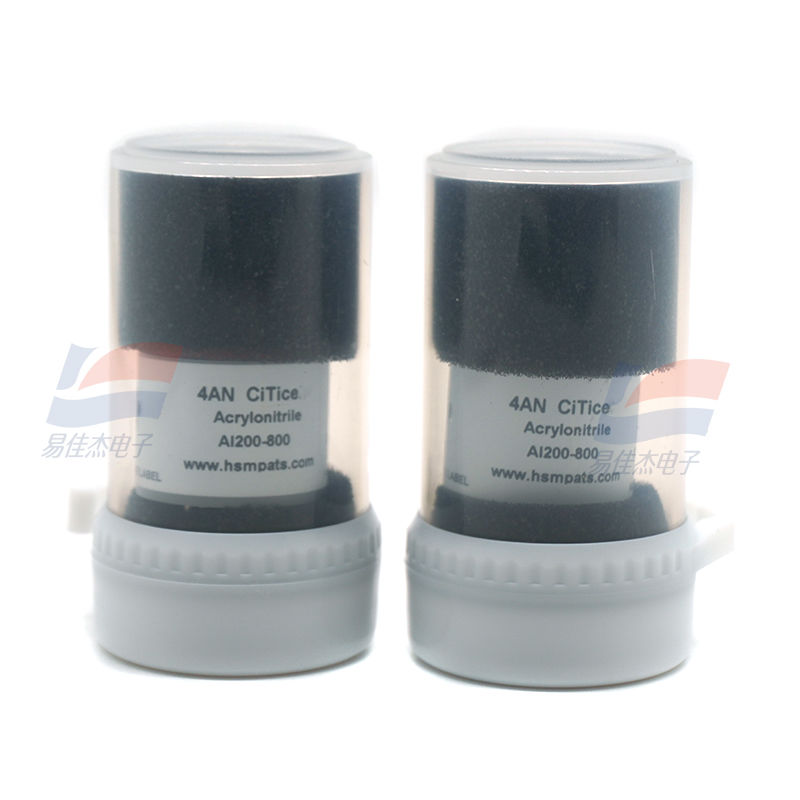

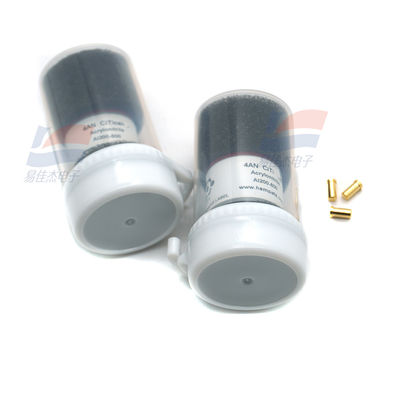

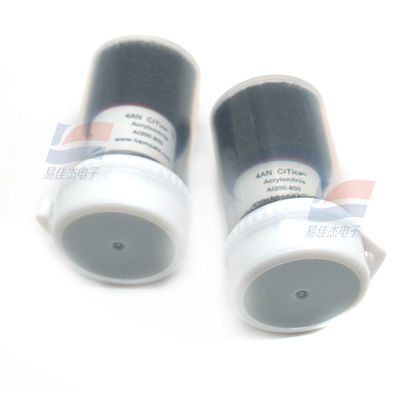

YJJ 4AN Acrylonitrile (C3H3N) Gas Sensor Part Number: AI200-800
Features:
purpose of this document is to present the performance specification of the 4AN CiTiceL.
This document should be used in conjunction with Operating Principles (OP09) and the Product Safety Datasheet (PSDS 2).
The data provided in this document are valid at 20°C, 50% RH and 1013 mBar for 3 months from the date of sensor manufacture. For guidance on sensor performance outside of these limits, please refer to the Operating Principles.
Output signal can drift below the lower limit over time. For guidance on the safe use of the sensor, please refer to the Operating Principles.
Operating Principle:3-electrode electrochemical
Measurement Range:0 ppm to 80 ppm C3H3N
Filter:None
Sensitivity:250 nA/ppm ±100 nA/ppm
Response Time (T90):<120 seconds at 20°C
Baseline Offset:(clean air):-0.5 ppm to +1 ppm acrylonitrile equiv.
ELECTRICAL
Recommended Load Resistor:10 Ω
Bias Voltage:300 mV
MECHANICAL
Housing Material
(Cap and Body):ABS
Weight:5 g
Orientation:Any
ENVIRONMENTAL
Operating Temperature Range:-20°C to +50°C
Recommended Storage Temperature:0°C to 20°C
Operating Pressure Range:Atmospheric ±10 %
Operating Humidity Range:15% to 90% RH
LIFETIME
Expected Operating Life:Two years in air
Storage Life:6 months in CTL container
Standard Warranty:12 months
Specifications:
| Operating Temperature Range | -20°C to +50°C |
| Recommended Storage Temperature | 0°C to 20°C |
| Operating Pressure Range | Atmospheric ±10 % |
| Operating Humidity Range | 15% to 90% RH |
