تفاصيل المنتج:
|
| مؤشر المتاعب: | vConc = 0 - 0.1V (*) | الإخراج في الهواء: | 1.0 ± 0.2v |
|---|---|---|---|
| نطاق الرطوبة: | 20 - 95 ٪ RH | ظروف التخزين: | - 10 درجة مئوية - + 60 درجة مئوية ، 20 - 95 ٪ RH |
| جهد المدخلات (VIN): | 5.0 ± 0.2 فولت تيار مستمر | استهلاك الطاقة: | ≤1.5 واط |
| إبراز: | combustible gas pre-calibration module,gas leak detection module for fuel cells,fuel cell gas sensor with pre-calibration,gas leak detection module for fuel cells,fuel cell gas sensor with pre-calibration |
||

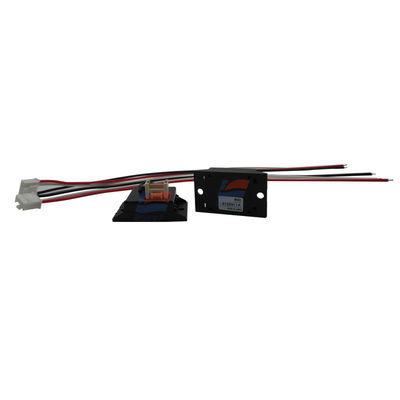

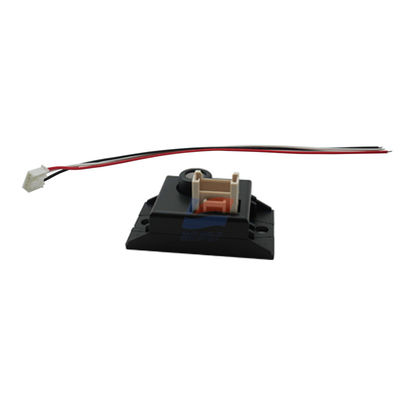

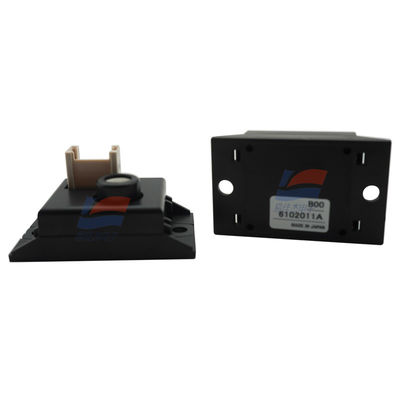

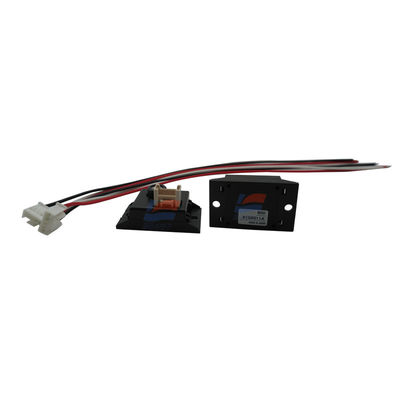

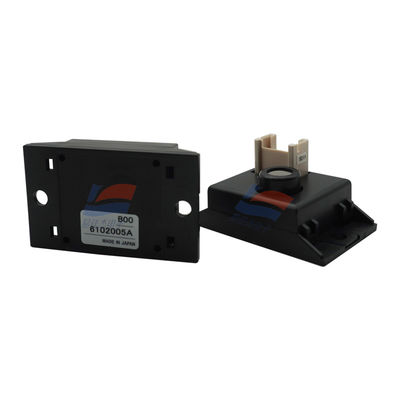

CGM6812-B00 Combustible-Gas-Pre-calibration-Module For Gas Leak Detection In Fuel Cell Systems
| Target Gases | Hydrogen, Methane, Butane, Propane, etc. |
| Detection Range | 0 - 14,000ppm H₂ (Can also detect methane, iso - butane, and propane) |
| Output Voltage | 1 - 4.5V DC (Up to max VIN), Vout=(H₂ conc(ppm)/4000)+1.0 |
| Trouble Indication | Vconc = 0 - 0.1V (*) |
| Output in Air | 1.0±0.2V |
| Factory - set Output in 8000ppm H₂ | 3.0±0.2V |
| Response Time (T90) to 4000ppm H₂ | ≤30 seconds |
| Warm - up Time (Vconc＜2.0V) | ≤30 seconds (Time to Vconc＜2.0V in air) |
| Operating Temperature Range | - 10°C - + 60°C |
| Humidity Range | 20 - 95%RH (Avoid Condensation) |
| Storage Conditions | - 10°C - + 60°C, 20 - 95%RH |
| Input Voltage (VIN) | 5.0±0.2V DC |
| Power Consumption | ≤1.5W |
| Dimensions | 50 x 30 x 25.3mm |
| Weight | 15g or less |
| Pin Connections | 1 GND (Common Ground); 2 NC (Not Connected); 3 NC (Not Connected); 4 VCONC (Concentration Output Voltage); 5 VIN (Input Voltage) |
| Connector Model | BH05B - XMSK, Recommended Receptacle: XMP - 05V |
| Sensing Principle | Catalytic Combustion |
