تفاصيل المنتج:
|
| دقة: | 0.01٪ حجم | التكرار: | ≤ ± 0.5 ٪ FS |
|---|---|---|---|
| وقت الاستجابة (T90): | ≤ 12 ثانية | وقت الاسترداد: | ≤ 18 ثانية |
| نطاق درجة حرارة التشغيل: | -30 درجة مئوية ~ +70 درجة مئوية | نطاق الرطوبة التشغيل: | 5% ~ 95% ر |
| إبراز: | industrial electrochemical oxygen sensor,oxygen gas sensor for environmental monitoring,industrial oxygen sensor with warranty,oxygen gas sensor for environmental monitoring,industrial oxygen sensor with warranty |
||

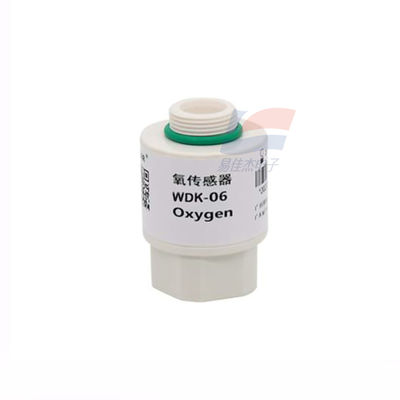

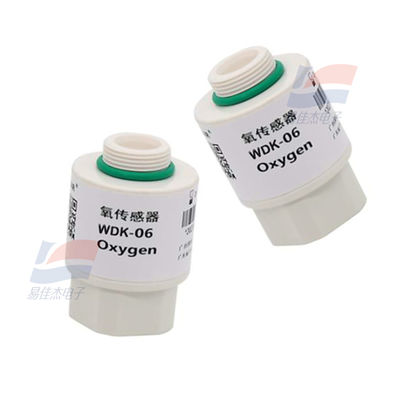

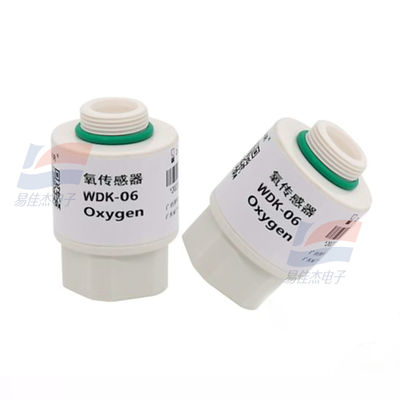

WDK-06 Industrial-grade Electrochemical Oxygen Gas Sensor For Environmental Monitoring
Core Features:
Typical Applications:
| Measuring Range | Standard: 0 ~ 25% VOL; Optional: 0 ~ 30% VOL / 0 ~ 100% VOL (customizable for special scenarios) |
| Measurement Accuracy | ≤ ±1.5% Full Scale (FS) (at 25℃, 1 atm; after pre-calibration) |
| Resolution | 0.01% VOL |
| Repeatability | ≤ ±0.5% FS |
| Response Time (T90) | ≤ 12 seconds (under standard conditions: 25℃, 1 atm, 50% RH; gas flow rate: 500 mL/min) |
| Recovery Time | ≤ 18 seconds (same conditions as response time) |
| Operating Temperature Range | -30℃ ~ +70℃ (extended temperature version available for -40℃ ~ +85℃) |
| Operating Humidity Range | 5% ~ 95% RH (non-condensing; supports high-humidity industrial environments) |
| Operating Pressure Range | 80 kPa ~ 120 kPa (adaptable to high-altitude or low-pressure scenarios) |
| Output Signal | - Analog: 4 ~ 20 mA DC (two-wire) / 0 ~ 5 V DC / 0 ~ 10 V DC - Digital: RS485 (Modbus RTU protocol, baud rate: 9600 ~ 115200 bps) - Optional: LoRa / NB-IoT (for wireless remote monitoring) |
| Power Supply | 10 ~ 30 V DC (wide voltage design; anti-surge protection) |
| Sensor Lifetime | ≥ 3 years (under normal operating conditions: clean air, 25℃, no chemical interference) |
| Zero Drift | ≤ ±0.3% FS per year (in clean air at 25℃) |
| Sensitivity Drift | ≤ ±1.0% FS per year (in clean air at 25℃) |
| Protection Rating | IP67 (dust-tight, protected against temporary immersion in water; suitable for outdoor/industrial sites) |
| Explosion-Proof Rating (Optional) | ExdⅡCT6 Ga (compliant with IEC 60079-0/-1; for hazardous areas with flammable gases) |
| Mounting Method | Pipeline-mounted (DN15/DN20/DN25 interfaces) / Wall-mounted / Threaded-mounted (M20×1.5) |
| Calibration | Factory pre-calibrated; supports on-site two-point calibration (zero point: clean air; span point: standard O₂ gas) |
