تفاصيل المنتج:
|
| النطاق الاسمي: | 0 ~ 10 جزء في المليون | الحد الأقصى للحمل الزائد: | 100 جزء في المليون |
|---|---|---|---|
| الحساسية (20 درجة مئوية): | 0.3 ± 0.1 μA/ppm | وقت الاستجابة (T90): | ≤ 35s |
| إبراز: | 4 electrode carbon monoxide sensor,CO gas sensor for air quality,carbon monoxide air monitoring sensor,CO gas sensor for air quality,carbon monoxide air monitoring sensor |
||

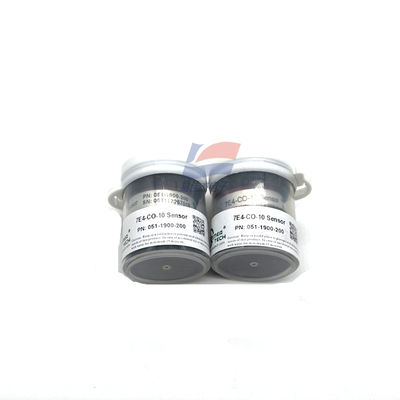

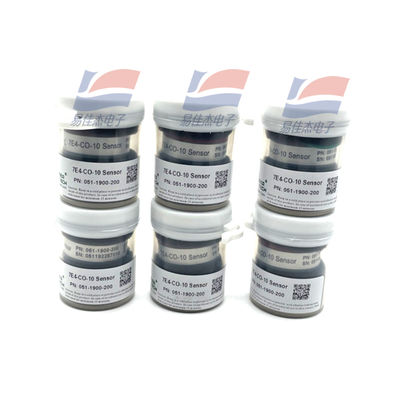

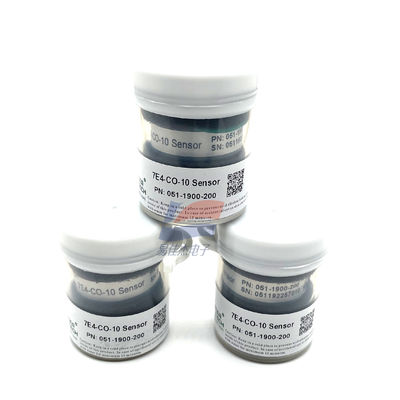

7E4-CO-10 Carbon Monoxide Gas Sensors 4 Electrode Air Quality Monitoring
This 4-electrode sensor is designed for air quality monitoring to measure the low-concentration CO gas with ultra-high resolutions. The design optimizes the sensor sensitivity, accuracy and long-term stability and enables the sensor to detect CO variations at parts per billion (ppb) levels.
Performance Characteristics
|
Zero Signal (20℃)
|
< ±100 nA |
| Baseline Shift | (-40℃ ~ 50℃) < 200 ppb (After compensation) |
| Resolution | 15 ppb |
| Linearity | Linear up to 10 ppm |
| Bias Voltage | 0 mV |
Environmental
|
Temperature Range
|
-40℃ ~ 50℃ |
| Pressure Range | 1 ± 0.1 atm |
| Humidity Range | 15% ~ 90%RH non-condensing |
Life Time
|
Long Time Output Drift
|
< 10% signal/year |
| Recommended Storage Temp | 10℃ ~ 30℃ |
| Expected Operating Life | 3 years in clean air |
| Storage Life | 6 months in original packaging |
| Warranty | 24 months |
