تفاصيل المنتج:
|
| النطاق الاسمي: | 0 ~ 5 جزء في المليون | الحد الأقصى للحمل الزائد: | 20 جزء في المليون |
|---|---|---|---|
| الحساسية (20 درجة مئوية): | 0.4 ± 0.2 μA/ppm | وقت الاستجابة (T90): | ≤ الستينيات |
| إبراز: | ethylene oxide gas sensor,electrochemical air quality sensor,7-series gas monitoring sensor,electrochemical air quality sensor,7-series gas monitoring sensor |
||

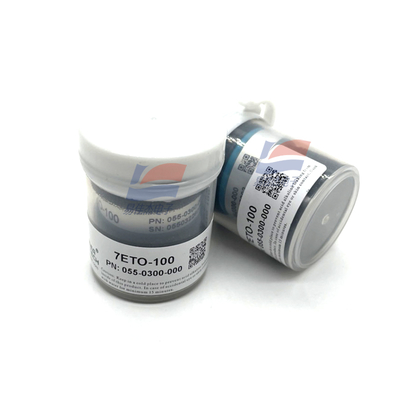

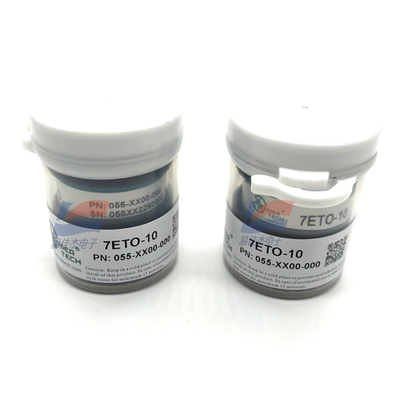

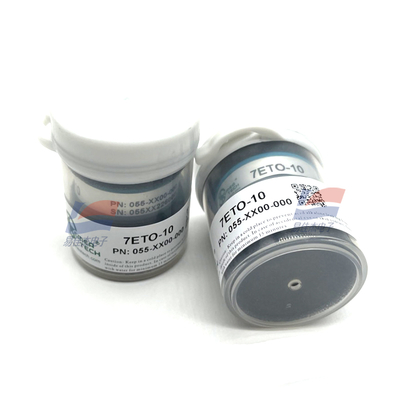

7ETO-10 Ethylene Oxide Gas Sensor 7-Series Electrochemical Air Quality Monitoring
This 4-electrode sensor is designed for air quality monitoring to measure the low-concentration SO2 gas with ultra-high resolutions. The design optimizes the sensor sensitivity, accuracy and long-term stability and enables the sensor to detect SO2 variations at parts per billion (ppb) levels.
Output signals from the sensor pins are different. Inappropriate use of the pins in product design will affect the sensor functionality. Exposure to high concentrations of solvent vapors should be avoided under any condition. Mechanical overstress may cause deformation or cracks of the plastic enclosure of the sensor.
Performance Characteristics
|
Zero Signal (20℃)
|
< ±80 nA |
| Baseline Shift | (-40℃ ~ 50℃) < 60 ppb (After compensation) |
| Resolution | 10 ppb |
| Linearity | Linear up to 5 ppm |
| Bias Voltage | 0 mV |
Environmental
|
Temperature Range
|
-40℃ ~ 50℃ |
| Pressure Range | 1 ± 0.1 atm |
| Humidity Range | 15% ~ 90%RH non-condensing |
