تفاصيل المنتج:
|
| النطاق الاسمي: | 0 ~ 10 جزء في المليون | الحد الأقصى للحمل الزائد: | 50 جزء في المليون |
|---|---|---|---|
| الحساسية (20 درجة مئوية): | -0.4 ± 0.1 μA/ppm | وقت الاستجابة (T90): | ≤ 120s |
| إبراز: | hydrogen fluoride gas sensor,electrochemical gas sensor 7Series,7HF-10 gas sensor with warranty,electrochemical gas sensor 7Series,7HF-10 gas sensor with warranty |
||

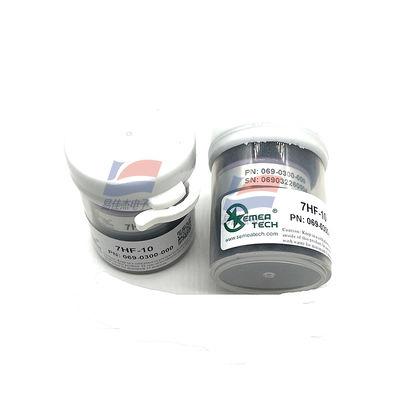

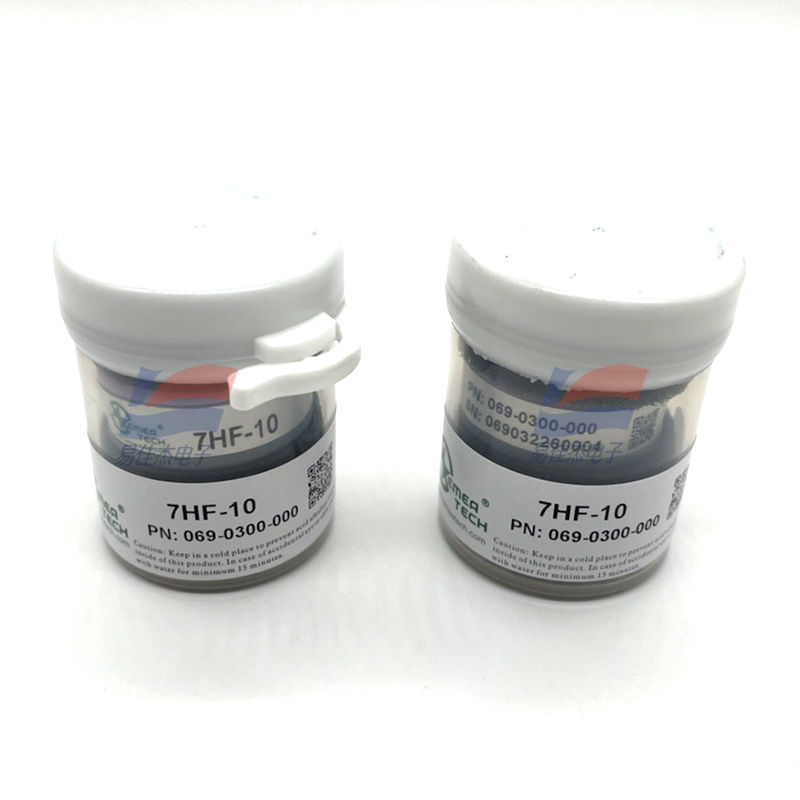

7HF-10 Hydrogen Fluoride Gas Sensors Electrochemical 7Series
This sensor is designed for the measurement of Hydrogen Fluoride concentration in gas phase. It can be used as the pin-to-pin replacement of the standard 7-series electrochemical Hydrogen Fluoride sensors made by the other manufacturers.
Installation
Output signals from the sensor pins are different. Inappropriate use of the pins in product design will affect the sensor functionality. Exposure to high concentrations of solvent vapors should be avoided under any condition. Mechanical overstress may cause deformation or cracks of the plastic enclosure of the sensor.
Environmental
|
Temperature Range
|
-20℃ ~ 50℃ |
| Pressure Range | 1 ± 0.1 atm |
| Humidity Range | 15% ~ 90%RH non-condensing |
Life Time
|
Long Time Output Drift
|
< 2% signal/month |
| Recommended Storage Temp | 10℃ ~ 30℃ |
| Expected Operating Life | 2 years in clean air |
| Storage Life | 6 months in original packaging |
| Warranty | 12 months |
