تفاصيل المنتج:
|
| النطاق الاسمي: | 0 ~ 20 جزء في المليون | الحد الأقصى للحمل الزائد: | 100 جزء في المليون |
|---|---|---|---|
| الحساسية (20 درجة مئوية): | -0.8 ± 0.2 μappm | وقت الاستجابة (T90): | ≤30 ثانية |
| إبراز: | Nitrogen Dioxide Gas Sensor 20PPM,Electrochemical NO2 Gas Sensor,20PPM Nitrogen Dioxide Sensor,Electrochemical NO2 Gas Sensor,20PPM Nitrogen Dioxide Sensor |
||

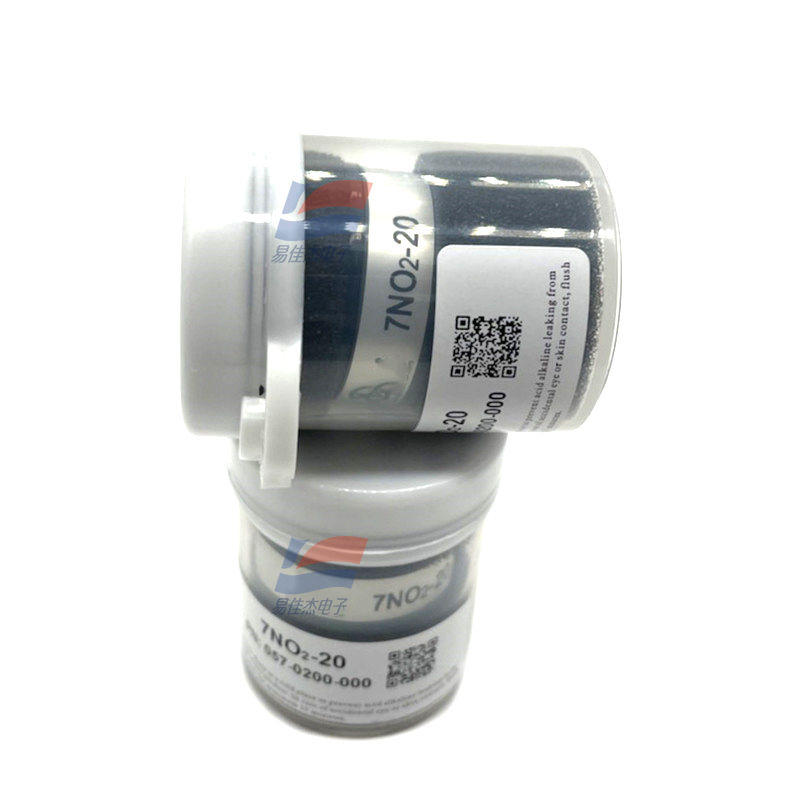

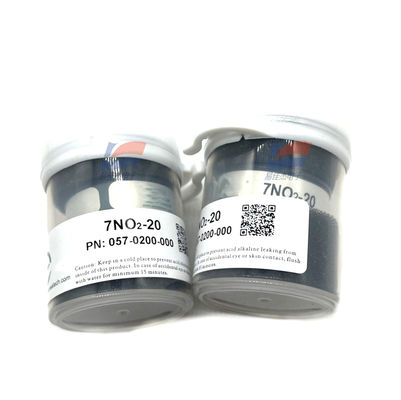

7NO2-20 057-0200-000 Nitrogen Dioxide Gas Sensor 20PPM Electrochemical
Description
This sensor is designed for the measurement of Nitrogen Dioxide concentration in gas phase. It can be used as a pin-to-pin replacement for the standard 7-series electrochemical Nitrogen Dioxide sensors made by other manufacturers.
Performance Characteristics
| Baseline Shift (-40°C~50°C) | <0.5 ppm |
| Resolution | 0.005 ppm |
| Linearity | Linear up to 20 ppm |
| Bias Voltage | 0 mV |
Environmental
| Temperature Range | -40°C-50°C |
| Pressure Range | 1 + 0.1 atm |
| Humidity Range | 15%~90%RH non-condensing |
