تفاصيل المنتج:
|
| يتراوح: | 0 - 100 جزء في المليون | الحد الأقصى للحمل الزائد: | 200 جزء في المليون |
|---|---|---|---|
| دقة: | <0.1 جزء في المليون | وقت الاستجابة: | T90 <30 ثانية |
| نطاق درجة الحرارة: | -40 درجة مئوية إلى 50 درجة مئوية | نطاق الرطوبة: | 15 ٪ - 90 ٪ RH |
| نطاق الضغط: | الضغط الجوي ± 10 ٪ | output Signal: | 200 ± 80 Na/ppm |
| إبراز: | CS2 gas sensor for safety detection,CF-100 carbon disulfide sensor,process gas sensor with warranty,CF-100 carbon disulfide sensor,process gas sensor with warranty |
||
Product Description:

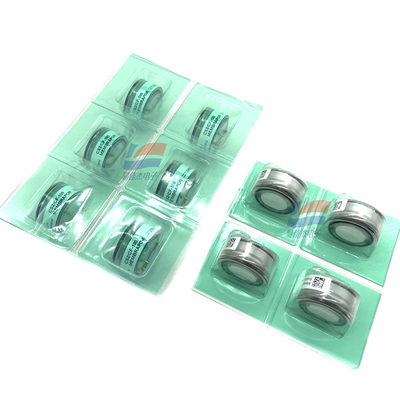

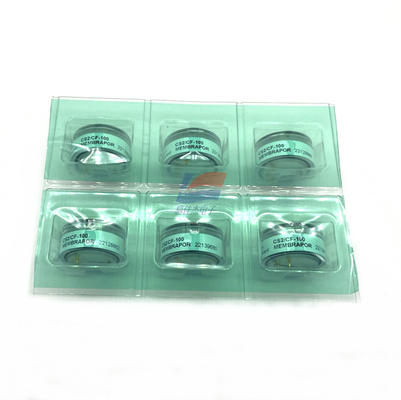

YJJ CS2/CF-100 Carbon Disulfide Gas Sensor For Safety Process Detection
Features:
Main parameters of the CS2/CF-100 gas sensor are as follows:
Core parameters
Range: 0 - 100 ppm
Maximum overload: 200 ppm
Resolution: < 0.1 ppm
Response time: T90 < 30 seconds
Temperature range: -40°C to 50°C
Humidity range: 15% - 90% RH
Pressure range: Atmospheric pressure ±10%
Performance indicators
Output signal: 200 ± 80 nA/ppm
Load resistance: 10 - 33 Ω
Life span: Approximately 2 years in the air.
Application Instructions
This product is suitable for industrial gas detection. Please be aware that high concentrations of interfering ions (such as trivalent aluminum ions and trivalent sodium ions) may affect the measurement accuracy.
Specifications:
| Maximum overrun range: | 0-100ppm |
| Signal output: | 0.1 0.02mA |
| Response time (T90) | < 15s |
| Load resistance | 100 Ω |
