تفاصيل المنتج:
|
| خصائص الحساسية الطيفية (قصيرة): | 185 نيمتر | خصائص الحساسية الطيفية (طويلة): | 260 Nm |
|---|---|---|---|
| مادة كهربائية: | ني | وزن: | 1.5 جرام |
| [الحد الأقصى للتصنيف] جهد إمداد الطاقة: | 500 فولت | [تصنيف الحد الأقصى] متوسط تيار التفريغ: | 1 م |
| [الحد الأقصى للتصنيف] ذروة تيار: | 30 م | نطاق درجة حرارة التشغيل: | -40 إلى +125 درجة مئوية |
| إبراز: | YJJ R9454 UV flame detector,side-window UV photodiode sensor,UV light bulb flame detector,side-window UV photodiode sensor,UV light bulb flame detector |
||
Product Description:

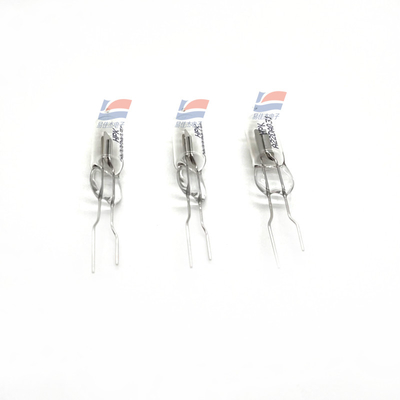

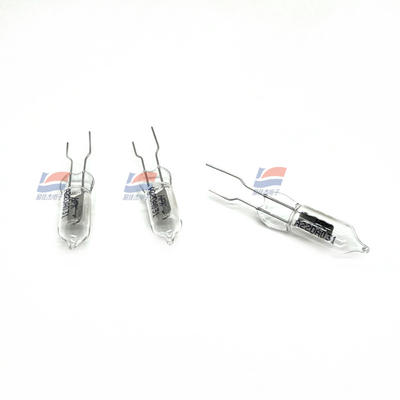

YJJ R9454 Side-Window Type UV Light From Side Flame Detector of Bulb
Features:
R9454 is a side-window type (UV light enters from the side of the bulb), and its shape is similar to that of R2868 UVtron. It features high sensitivity and a wide field of view (directionality).
Detailed parameters
Spectral sensitivity characteristics (short) 185 nm
Spectral sensitivity characteristics (long) 260 nm
Electrode material Ni
Weight 1.5 g
[Maximum Rating] Power supply voltage (DC) 500 V
[Maximum Rating] Average discharge current 1 mA
[Maximum Rating] Peak current 30 mA
[Maximum Rating] Operating temperature range -40 to +125 °C
Discharge startup voltage (DC) 360 V
Discharge holding voltage (DC) 300 V
Typical sensitivity value 4000 min-1
Maximum background value 10 min-1
[Recommended Operating Parameters] Power supply voltage (DC) 400 ± 25 V
[Recommended Operating Parameters] Average discharge current 0.3 mA
[Recommended Operating Parameters] Shortest quenching time 2 ms
Specifications:
| Spectral sensitivity characteristics (short) | 185 nm |
| Spectral sensitivity characteristics (long) | 260 nm |
| Electrode material | Ni |
| Weight | 1.5 g |
