تفاصيل المنتج:
|
| نطاق القياس: | 0 إلى 10 أجزاء | حساسية: | 1.9 ± 0.8 microamperes لكل جزء في المليون |
|---|---|---|---|
| دقة: | 0.1 جزء لكل مليون | وقت الاستجابة: | T90 |
| درجة حرارة: | -20 ℃ إلى 50 ℃ | رطوبة: | 15٪ إلى 90٪ RH |
| ضغط: | 90 إلى 110 كيلو باسكال | خدمة الخدمة: | 3 سنوات |
| إبراز: | electrochemical gas sensor for environmental monitoring,0-10 ppm gas sensor,YJJ 4ETO-10 gas sensor,0-10 ppm gas sensor,YJJ 4ETO-10 gas sensor |
||
Product Description:

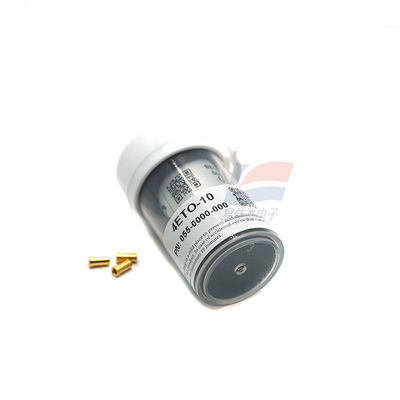

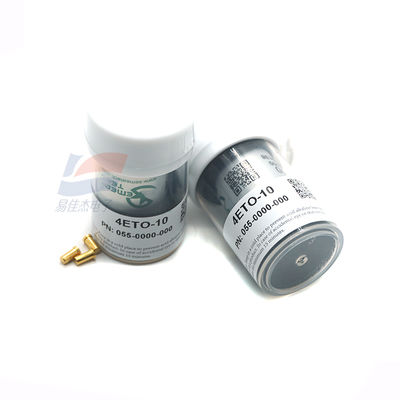

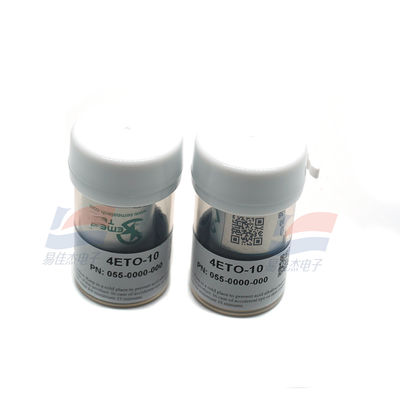

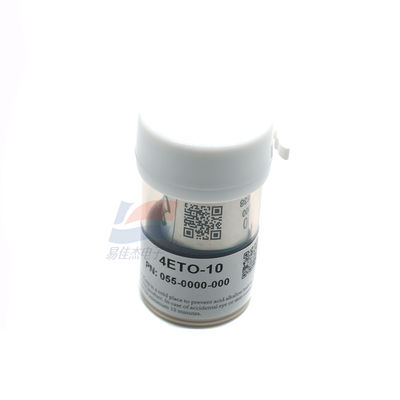

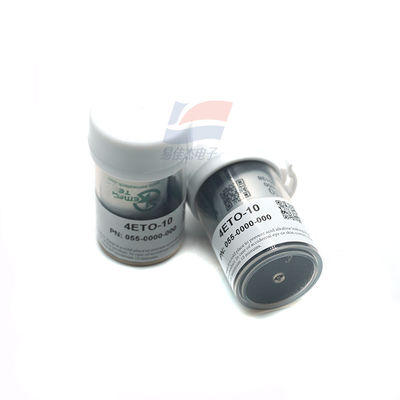

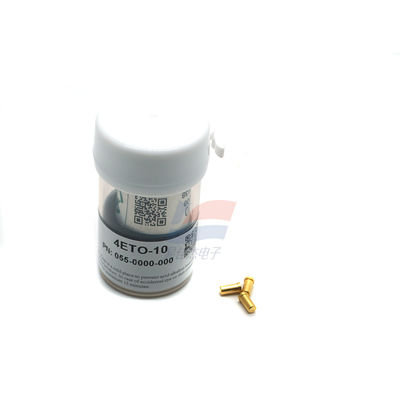

YJJ 4ETO-10 0-10 ppm Electrochemical Gas Sensor Is Used For Environmental Monitoring
Features:
Main parameters of the 4ETO-10 gas sensor are as follows:
Measurement range
0 to 10 parts per million of ethylene oxide (C2H4O).
Sensitivity
1.9 ± 0.8 μA/ppm (baseline range: -0.2 to 2.5 μA), or 0.760 ± 0.32 μA/ppm.
Resolution
0.1 parts per million.
Response time (T₉₀)
≤ 120 seconds.
Working temperature
-20℃ to 50℃.
Humidity range
15% - 90% relative humidity (no condensation).
Pressure range
90 to 110 kPa.
Long-term stability
The signal value changes by less than 2% each month.
Service life
In the air environment, it lasts for approximately 3 years.
4ETO-10 gas sensor is mainly used for detecting the concentration of ethylene oxide (C2H4O), and is applicable in industrial environments, petrochemical industries, pharmaceutical production, and other scenarios.
Specifications:
| Range | 0 - 100 ppm |
| Sensitivity | 1.9 ± 0.8 μA/ppm (at 20℃) |
| Baseline range | -0.2 to 2.5 μA (@20℃) |
| Response time | ≤ 120 seconds (T90) |
