تفاصيل المنتج:
|
| طَرد: | إلى 8 | حجم المنطقة الحساسة: | 5.8*5.8mm |
|---|---|---|---|
| عكس الجهد VR كحد أقصى: | 5V | درجة حرارة التشغيل: | -40 إلى +100 درجة مئوية |
| إبراز: | UV photodiode sensor with suppressed IR,Si photodiode for UV to visible,S1226-8BK photodiode near IR suppressed,Si photodiode for UV to visible,S1226-8BK photodiode near IR suppressed |
||

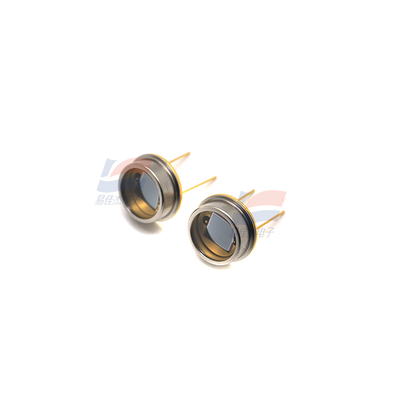

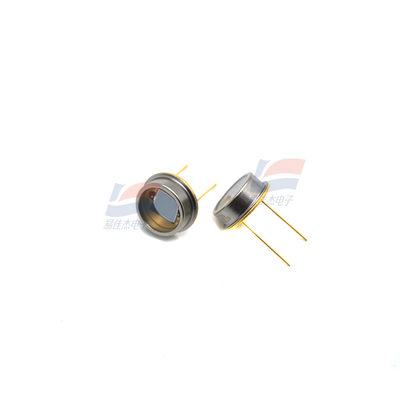

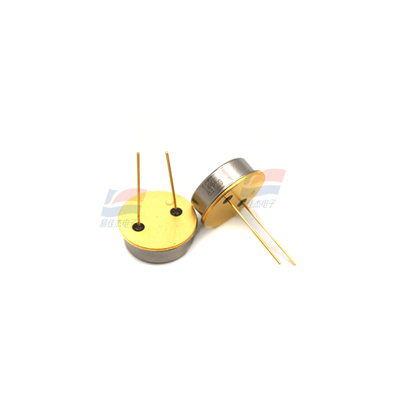

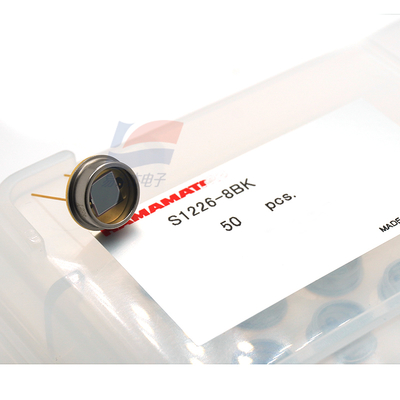

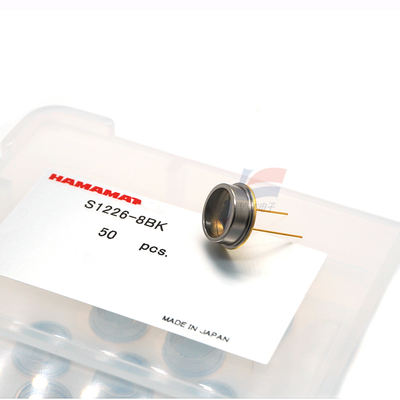

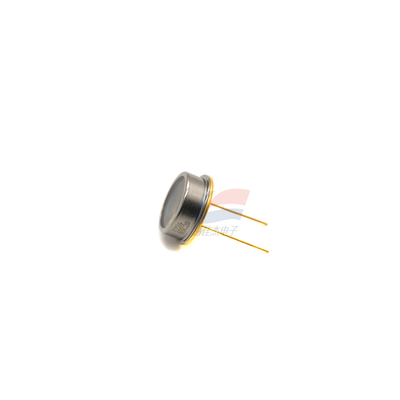

S1226-8BK Si PhotodiodeSuppressed Near IR Sensitivity UV to Visible
Features
Suppressed near IR sensitivity
High sensitivity in UV region (quartz glass type)
Low dark current
High reliability
Applications
>Analytical equipment
>Optical measurement equipment, etc.
Specification:
|
Spectral response range
|
320 to 1000 nm |
| Peak sensitivity wavelength (typ.) | 720 nm |
| Photosensitivity (typ.) | 0.36 A/W |
| Dark current (max.) | 20 pA |
| Rise time (typ.) | 2 μs |
| Terminal capacitance (typ.) | 1200 pF |
| Noise equivalent power (typ.) | 5.0×10-15 W/Hz1/2 |
