تفاصيل المنتج:
|
| منطقة حساسة للضوء: | 2.4 × 2.4 ملم | طَرد: | السيراميك |
|---|---|---|---|
| تبريد: | غير مبردة | الجهد العكسي (كحد أقصى): | 5 v |
| إبراز: | UV photodiode sensor for precision photometry,silicon photodiode sensor UV to visible,S1227-33BR photodiode sensor with warranty,silicon photodiode sensor UV to visible,S1227-33BR photodiode sensor with warranty |
||

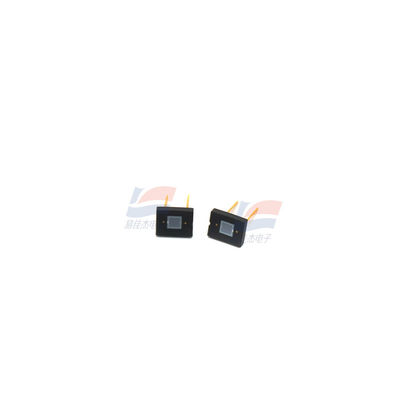

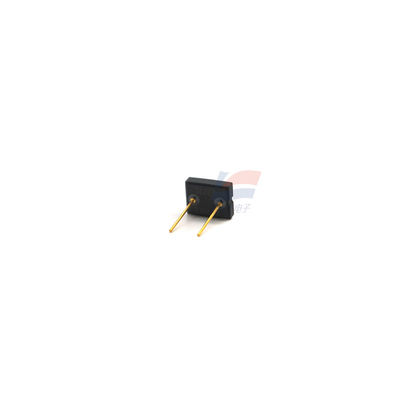

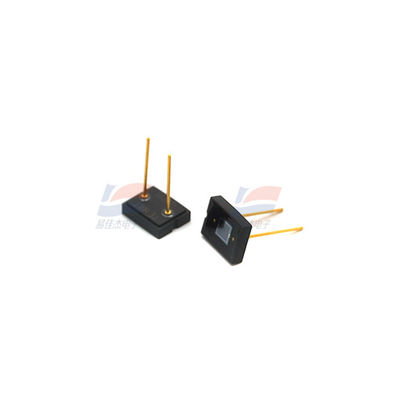

S1227-33BR Si Photodiode Sensors For UV to Visible Precision Photometry Silicon
Features:
High uV sensitivity (quartz window type): QE 75 % (λ=200 nm)
Suppressed IR sensitivity
Low dark current
Applications:
Analytical equipment
Optical measurement equipment, etc.
Specification:
|
Spectral response range
|
340 to 1000 nm |
| Peak sensitivity wavelength (typ.) | 720 nm |
| Photosensitivity (typ.) | 0.43 A/W |
| Dark current (max.) | 5 pA |
| Rise time (typ.) | 0.5 μs |
| Terminal capacitance (typ.) | 160 pF |
| Noise equivalent power (typ.) | 2.1×10-15 W/Hz1/2 |
