تفاصيل المنتج:
|
| منطقة حساسة: | 1 | عدد وحدات البكسل: | 1 |
|---|---|---|---|
| نوع التغليف: | TO-18 | وضع التبريد: | غير مبردة |
| نطاق الاستجابة الطيفية: | 0.9 إلى 1.7 ميكرون | الحساسية للضوء: | 1.1 أ/ث |
| إبراز: | InGaAs PIN photodiode for fiber communication,Non-cooled infrared photoelectric sensor,Optical communication photodiode with warranty,Non-cooled infrared photoelectric sensor,Optical communication photodiode with warranty |
||
Product Description:

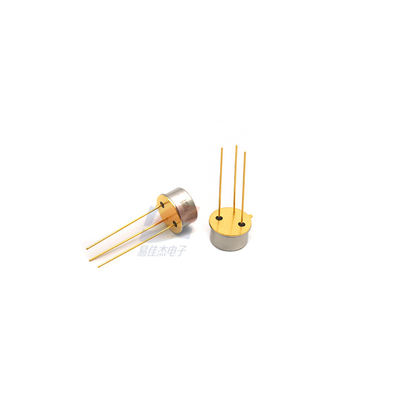

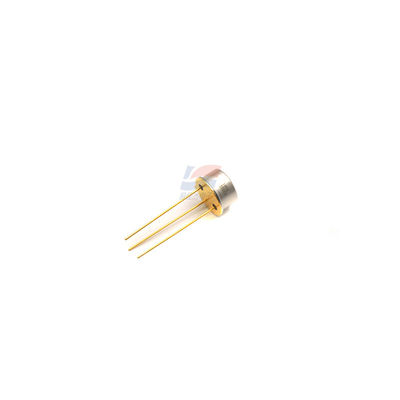

YJJ G12180-020A InGaAs PIN Photodiode Non-Cooled Type For Optical Fiber Communication
Features:
Sensitive area: φ1mm
Product characteristics
Low noise
Low junction capacitance
Low dark current
Sensitive area: φ1mm
Detailed parameter
The sensitive area is φ1mm
The number of pixels is 1
Encapsulation Metal
Encapsulation type: TO-18
Cooling mode Non-cooled
Spectral response range is 0.9 to 1.7 μm
The peak sensitivity wavelength (typical value) is 1.55 μm
Light sensitivity (typical value) 1.1 A/W
Dark current (Max.) 4 nA
Cut-off frequency (typical value) 60 MHz
Junction capacitance (typical value) 55 pF
Noise equivalent power (typical value) 1.4×10-14 W/Hz1/2
Typ. Ta=25 ℃, unless otherwise noted, Photosensitivity: λ=λp, Dark current: VR= 5V, Cutoff frequency: VR= 5V, RL= 50Ω, -3 dB, Terminal capacitance: VR= 5V, f= 1MHz.
Specifications:
| Photosensitive area | 0.2mm |
| The encapsulation type is | TO-18 |
| Peak sensitivity wavelength (typical value) | 800 nm |
| The spectral response range is | 400 to 1000 nm |
