تفاصيل المنتج:
|
| الجهد المقنن: | 125 فولت تيار متردد - 250 فولت تيار متردد | نماذج تدعم ما يصل: | 440V |
|---|---|---|---|
| تصنيف تيار الاتصال: | 250 مللي أمبير | عمر ميكانيكي: | ≥ 30,000 مرة |
| يمكن أن تصل النماذج: | 100000 مرة | العمر الكهربائي: | ≥ 10,000 مرة |
| إبراز: | YJJ MR-AN112 rotating handwheel switch,10 position electronic band switch,MRA112 handwheel switch with warranty,10 position electronic band switch,MRA112 handwheel switch with warranty |
||
Product Description:

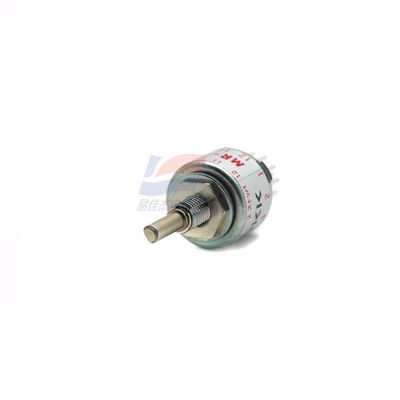

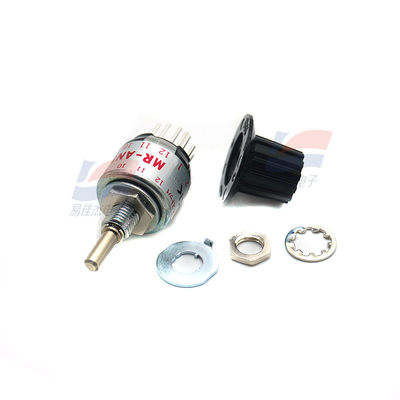

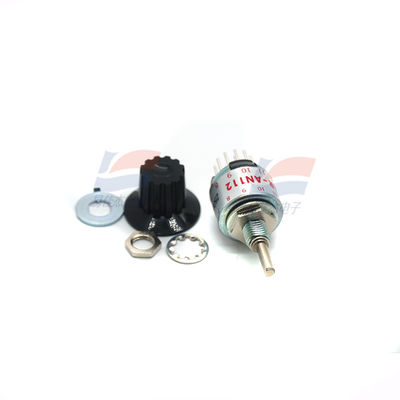

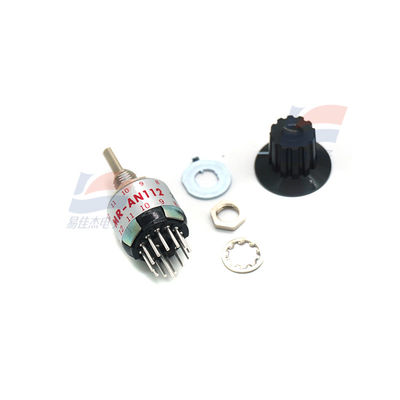

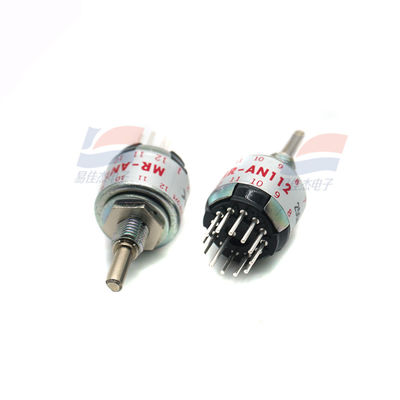

YJJ MR-AN112 Band Switch MRA112 Rotating Electronic Handwheel Switch With 10 Positions (1 to 12)
Features:
MR-A112 is a rotary switch produced by NKK of Japan, mainly used in the field of industrial equipment control. Here are its key parameters:
Working voltage and current
Rated voltage: 125VAC - 250VAC (varies slightly among different models; some models support up to 440V or higher)
Rated current of contact: 250mA
Mechanical and Electrical Lifespan
Mechanical lifespan: ≥ 30,000 times (some models can reach up to 100,000 times)
Electrical lifespan: ≥ 10,000 times
Installation and Dimensions
Dimensions: 16×32mm (diameter×height), suitable for panel installation
Installation aperture: 6.35mm
Other characteristics
Degree of division: 30°
Operating temperature range: above -10°C
Contact material: Silver-plated brass (fixed contact) / Silver-plated copper (movable contact)
Note: There may be differences in parameters among different models. It is recommended to select the appropriate model based on the specific application scenario.
Specifications:
| Current load | 10 A |
| Protection grade | IP64 |
| double-break circuit | 5A |
| A series of | MR-AN112 |
