تفاصيل المنتج:
|
| نطاق قياس الرطوبة: | 0 ~ 100٪ ر | دقة قياس الرطوبة: | ±2% رطوبة نسبية (عند 25 درجة مئوية، 20~80% رطوبة نسبية) |
|---|---|---|---|
| قرار الرطوبة: | 0.024% رطوبة نسبية | نطاق قياس درجة الحرارة: | -40 ~ +80 درجة مئوية |
| قرار درجة الحرارة: | 0.01 درجة مئوية | الجهد توريد: | تيار مستمر 2.0 ~ 5.5 فولت |
| إبراز: | HVAC humidity temperature sensor,dehumidifier testing sensor,measuring equipment temperature sensor,dehumidifier testing sensor,measuring equipment temperature sensor |
||

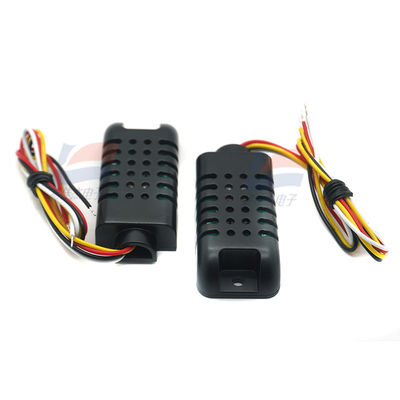

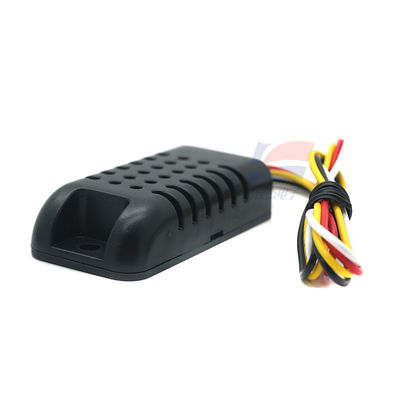

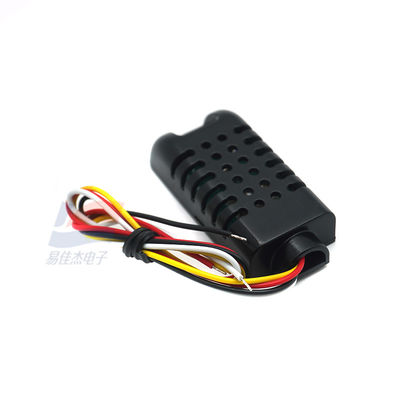

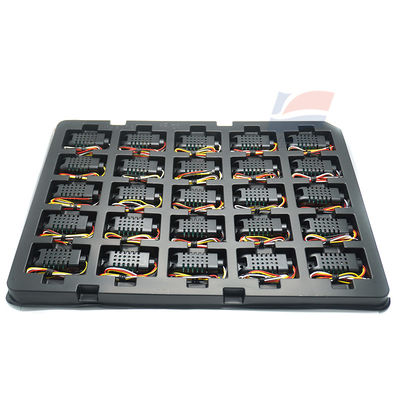

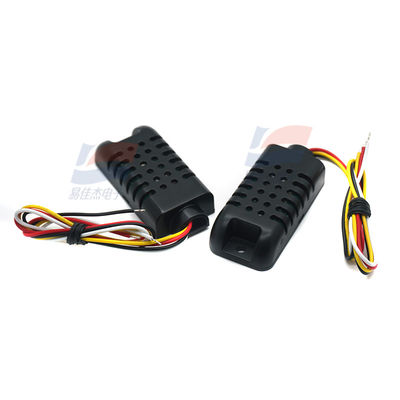

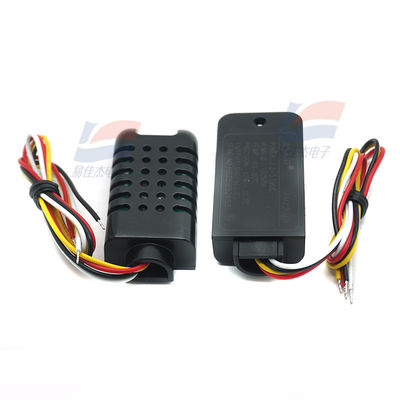

AM2301B Humidity Temperature Sensor For HVAC Systems Dehumidifiers Testing And Measuring Equipment
General Description:
The AM2301B is a digital humidity and temperature composite sensor with calibrated digital signal output. It combines advanced sensing technology with digital processing to provide high reliability and excellent long-term stability in various environmental conditions.
Features:
Applications:
| Humidity Measurement Range | 0 ~ 100% RH |
| Humidity Measurement Accuracy | ±2% RH (at 25°C, 20~80% RH) |
| Humidity Resolution | 0.024% RH |
| Temperature Measurement Range | -40 ~ +80°C |
| Temperature Measurement Accuracy | ±0.3°C (at 25°C) |
| Temperature Resolution | 0.01°C |
| Output Signal | I²C digital signal |
| Supply Voltage | DC 2.0 ~ 5.5V |
| I²C Address | 0x38 (fixed, non-changeable) |
| Operating Current | < 200μA (active mode) |
| Standby Current | < 2μA |
| Response Time | < 5s (for humidity) |
| Sensing Element | Polymer capacitor |
| Operating Temperature Range | -40 ~ +80°C |
| Storage Temperature Range | -40 ~ +80°C |
