تفاصيل المنتج:
|
| الجهد التشغيل: | 5V (DC) | متوسط الحالي: | <200 مللي أمبير |
|---|---|---|---|
| مستوى الواجهة: | 3V | إشارة الإخراج: | uart |
| تسخين الوقت: | ≥ 3 دقائق | نطاق ثاني أكسيد الكربون: | 0 - 5000 جزء في المليون |
| PM2.5 نطاق: | 0 - 1000 ميكروغرام/م3 | نطاق CH2O: | 0 - 1.6 جزء في المليون |
| مجموعة TVOC: | 4 درجات | حجم المظهر: | 72 مم × 61 مم |
| إبراز: | formaldehyde gas sensor module,VOC detection sensor module,laser dust sensor module,VOC detection sensor module,laser dust sensor module |
||
Product Description:

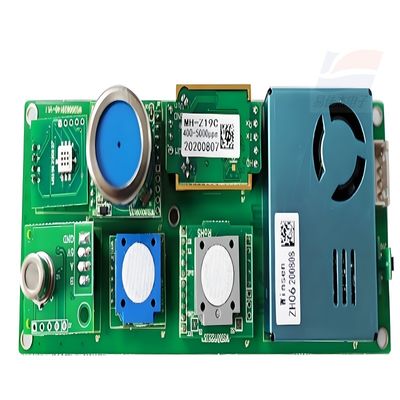

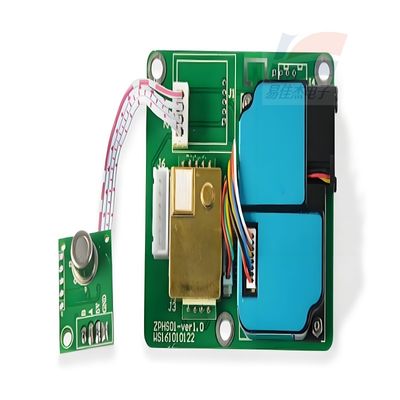

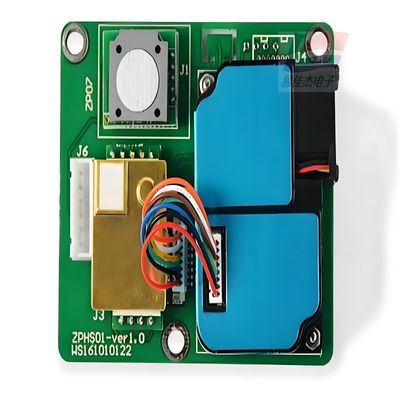

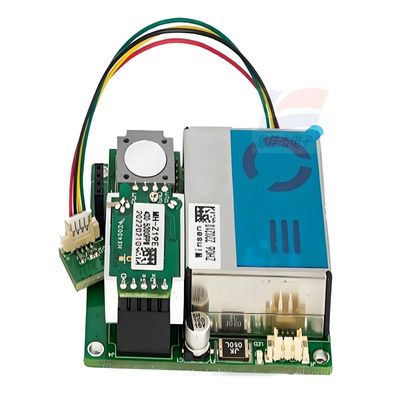

YJJ ZPHS01 ZPHS01B Multi-Function Gas Sensor Module For Formaldehyde VOC And Laser Dust Detection
Features:
ZPHS01 is a multi-functional module integrating electrochemical formaldehyde sensor, VOC sensor, laser dust sensor, infrared carbon dioxide sensor and temperature/humidity sensor. (Either the formaldehyde sensor or the VOC sensor can be used.)
Main applications
Gas detectors Air conditioning, air quality detection equipment, air purifiers, fresh air ventilation systems Smart home devices
Product model: ZPHS01
Detection categories: Carbon dioxide, PM2.5, Formaldehyde, TVOC, Humidity, Temperature
Interfering gases: Alcohol, carbon monoxide, etc.
Operating voltage: 5V (DC)
Average current: < 200mA
Interface level: 3V (compatible with 3.3V)
Output signal: UART
Preheating time: ≤ 3 minutes
Carbon dioxide range: 0 - 5000 ppm
PM2.5 range: 0 - 1000 ug/m3
CH2O range: 0 - 1.6 ppm
TVOC range: 4 grades
Temperature range: 0℃ - 65℃
Temperature accuracy: ±0.5℃
Humidity range: 0 - 100% RH
Humidity accuracy: ±3%
Operating temperature: 0 - 50℃
Operating humidity: 15 - 80% RH (no condensation)
Storage temperature: 0 - 50℃
Storage humidity: 0 - 60% RH
Appearance size: 72mm x 61mm
Specifications:
| Detection Categories | Carbon Dioxide, PM2.5, Formaldehyde, TVOC, Temperature and Humidity |
| Working Voltage | 5V |
| Current Consumption | Average current < 200mA |
| Output Signal | UART Interface |
| Preheating Time | ≤ 3 minutes |
