تفاصيل المنتج:
|
| نطاق الجهد: | 12V/24V | الحد الأقصى للتدفق: | 4.6 لتر/دقيقة |
|---|---|---|---|
| الأعلى. الضغط السلبي: | -68 كيلو باسكال (قياسي) | الأعلى. الضغط الإيجابي: | 1-1.5 بار |
| إبراز: | quiet oil free diaphragm pump,brushless DC micro vacuum pump,medical diaphragm pump with warranty,brushless DC micro vacuum pump,medical diaphragm pump with warranty |
||

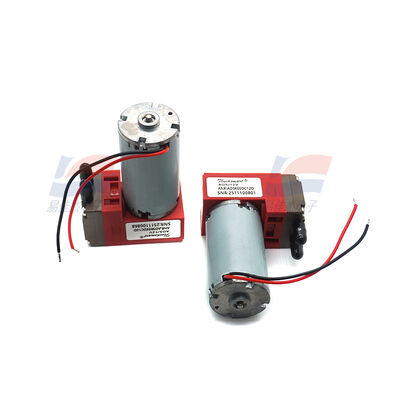

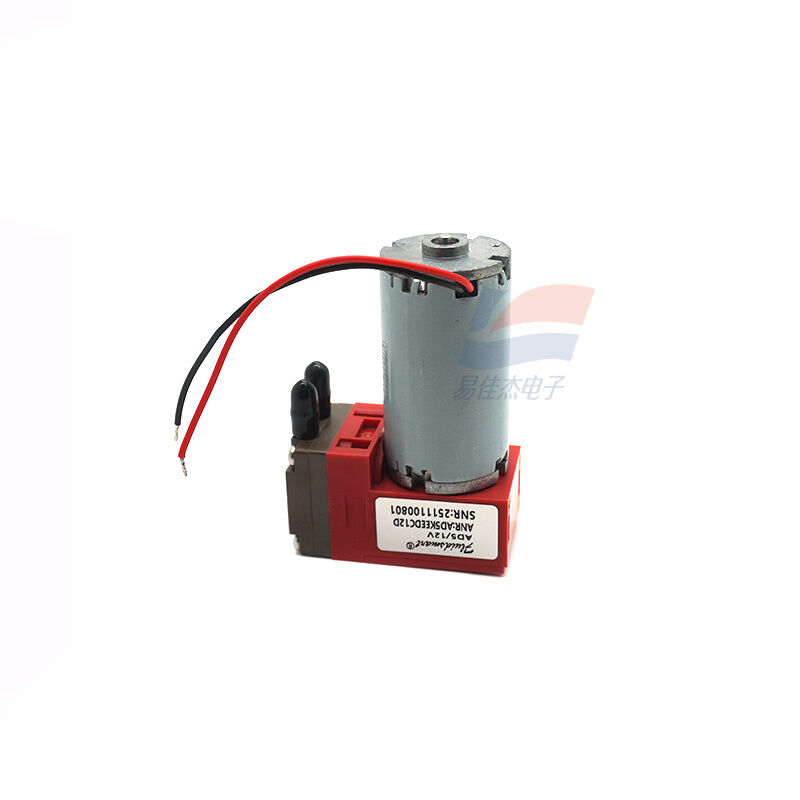

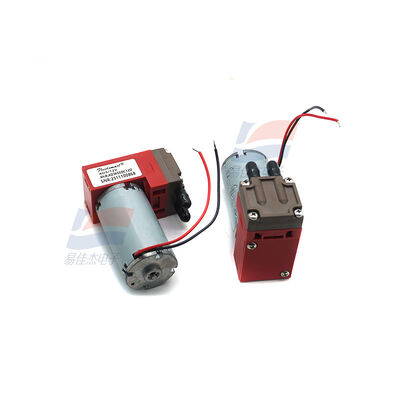

AD5KEEDC12D Quiet Oil Free Brushless DC Micro Vacuum Diaphragm Pump For Medical
The AD5 series is our most mature series at present. AD5 is a micro diaphragm air pump. The diaphragm pump has good air tightness and is generally used for suction and is suitable for negative pressure environments. This series has single-head, double-head parallel, double-head series, four-head parallel, and four-head series to meet the needs of different flow rates and vacuums. The maximum negative pressure can reach -99KPa, and there are two types of motors to choose from: brushed and brushless motors. In addition, there are high-temperature pumps with stainless steel pump heads that can withstand high-temperature gases up to 120°C. This micro air pump is not only highly efficient, but also has very low noise. It is a silent type, so it is often used in the medical industry, such as negative pressure wound therapy device, hemodialysis machines, negative pressure traction devices, nebulizers, oxygen machines, etc., and hundreds of thousands of them can be purchased every year.
Specification:
|
Motor type
|
High-end dc brushed motor |
| Max. power | 5W |
| Waterproof grade | IP40 |
| Storage environment temp | -40℃~60℃ |
| Working environment temp | -20℃~45℃ |
| Pump head material | PPS |
