تفاصيل المنتج:
|
| جهد العمل: | تيار مستمر 3.7 فولت ~ 9 فولت | العمل الحالي: | < 5 مللي أمبير |
|---|---|---|---|
| الحياة العملية: | > 1 سنة | مقاس: | ø23.5 ملم * 24.5 ملم |
| إبراز: | electrochemical gas sensor for NH3,O2 H2S NH3 gas sensor module,gas sensor module with warranty,O2 H2S NH3 gas sensor module,gas sensor module with warranty |
||

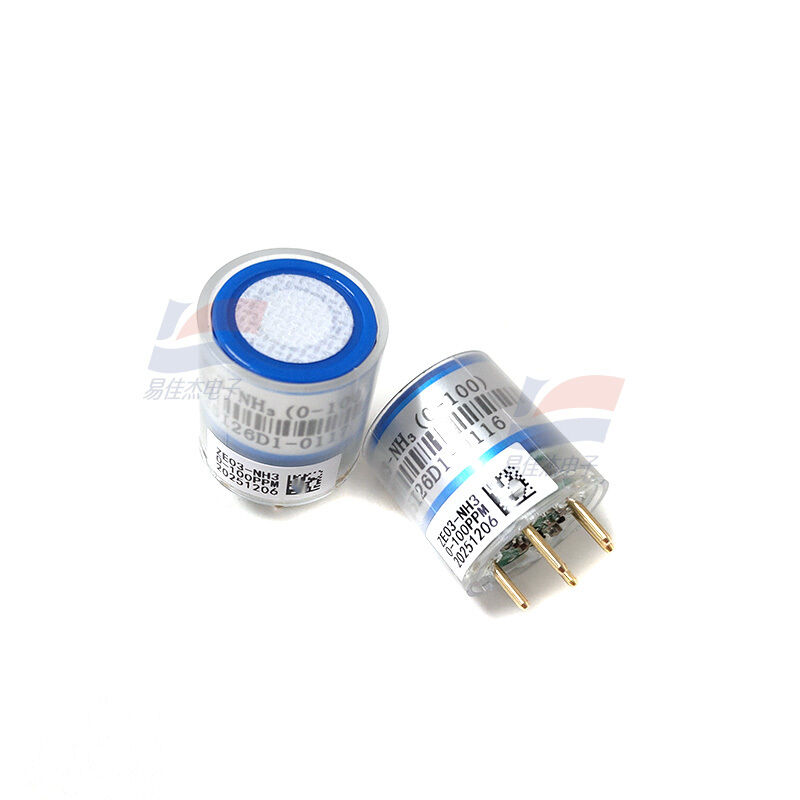

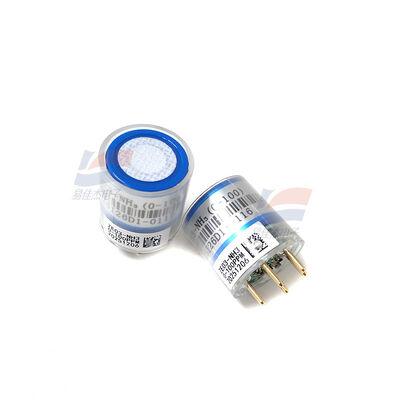

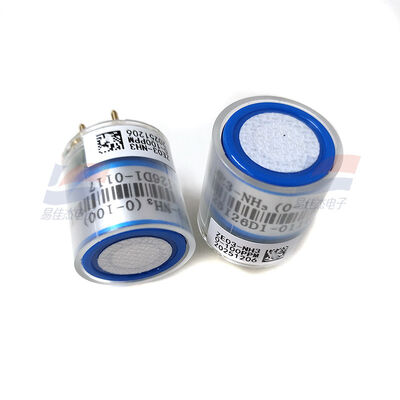

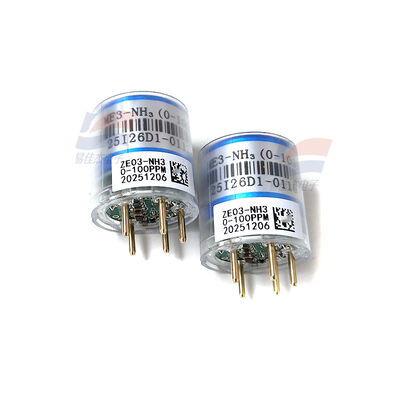

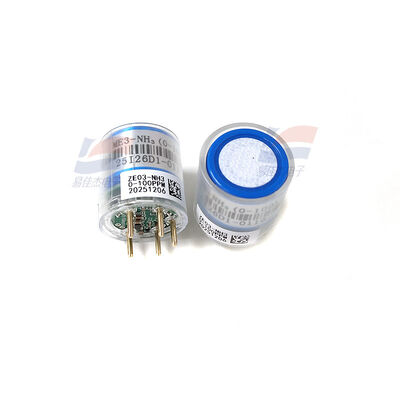

ZE03-NH3 Electrochemical Gas Sensor Module Test For O2 H2S NH3
Principle Introduction:
ZE03 is a general-purpose and high-performance electrochemical module. It uses three electrodes, electrochemical gas sensor and high-performance micro-processor. By installing different gas sensor, the module could detect relevant gas. It is with built-in temperature sensor to make temperature compensation, which makes it could detect the gas concentration accurately. It has the digital output and analog voltage output at the same time which facilities the usage and calibration and shorten the development period. It is a combination of mature electrochemical detection principle and sophisticated circuit design, to meet customers’ different detection needs.
Applications :
Portable and fixed gas detector, various gas detection equipment and situation.
Specification:
|
Model No.
|
ZE03 |
| Target Gas | CO, SO2, NH3, H2S, O2 and so on |
| Measurement Range | C0: 0~1000 ppm SO2: 0~20 ppm NH3: 0~100 ppm |
| Output Data |
UART Output (3V electrical level) Analog Voltage |
|
Operating Environment
|
Temp.: 0～50℃ Hum.: 20%RH-90％RH |
| Storage Environment |
Temp.: 0～55℃ Hum.: 20%RH-90％RH |
