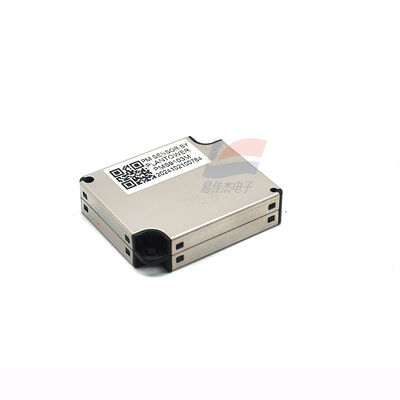

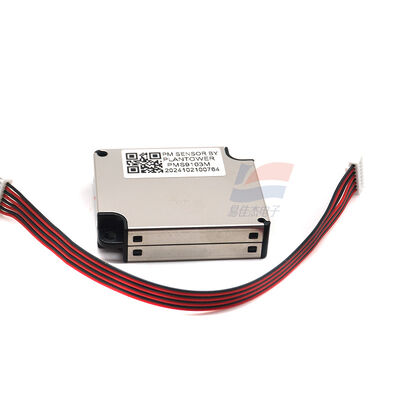

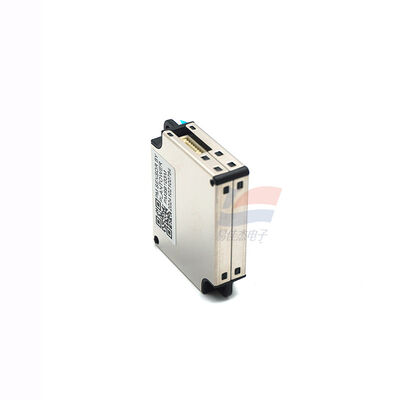

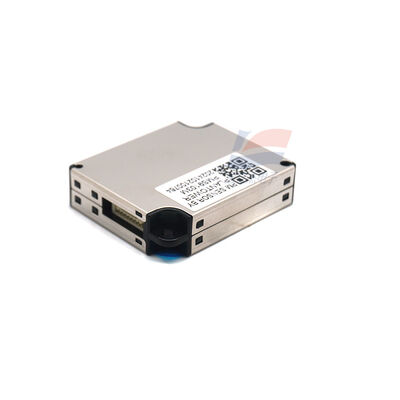

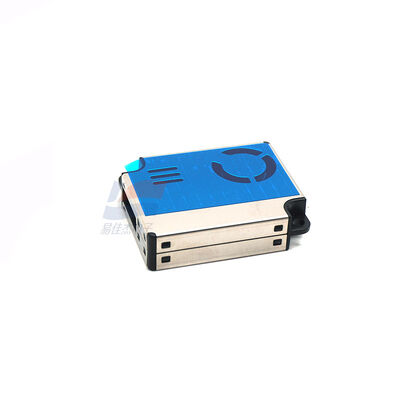

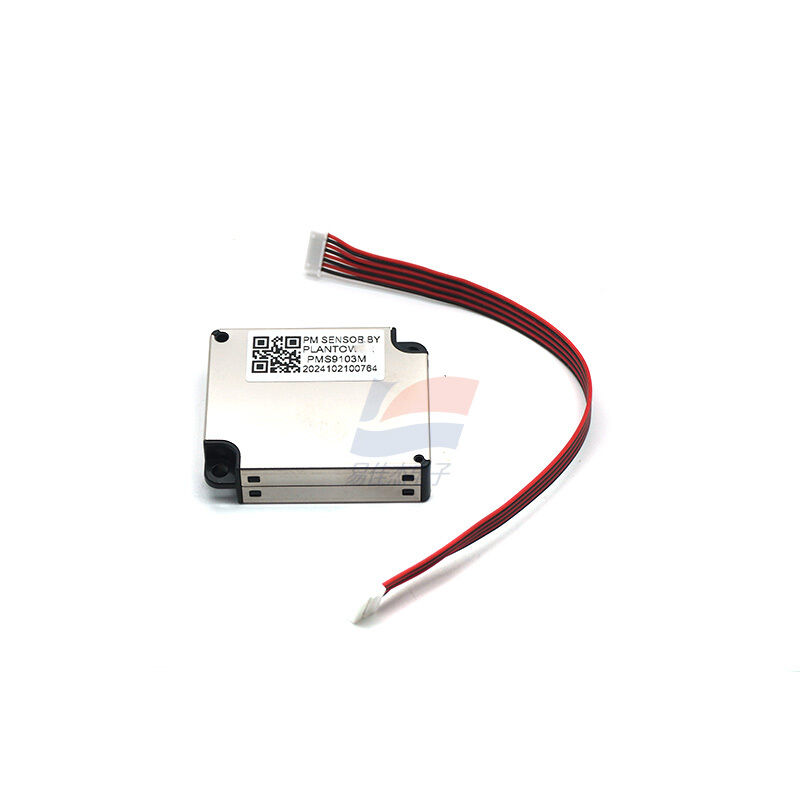

PMS9103M Dust Particle Sensor Module PM2.5 Real Time Response
Main characteristics
* Zero false alarm rate
* Real-time response
* Correct data
* Minimum distinguishable particle diameter :0.3 micrometer
* High anti-interference performance because of the new structure of six sides shielding
* Optional direction of air inlet and outlet in order to adapt the different design
Specification:
| Parameter | Index | Unit |
|---|---|---|
| Particle Range of measurement | 0.3~1.0; 1.0~2.5; 2.5~10 | Micrometer (μm) |
| Particle Counting Efficiency | 50%@0.3μm 98%@≥0.5μm | - |
| Particle Effective Range
|
0~500 | μg/m³ |
| Particle Maximum Range
|
≥1000 | μg/m³ |
| Particle Resolution | 1 | μg/m³ |
| Particle Maximum Consistency Error (PM2.5 standard data) | ±10%@100~500μg/m³
|
- |
| Particle Standard Volume | 0.1 | Litre (L) |
| Single Response Time | <1 | Second (s) |
| Total Response Time | <10 | Second (s) |
| DC Power Supply | Typ: 5.0 Min:4.5 Max:5.5 | Volt (V) |
| Active Current | ≤100 | Milliampere (mA) |
| Standby Current | ≤10 |
