تفاصيل المنتج:
|
| حجم النافذة: | 5.0*5.0mm | حجم العنصر الحساس: | 3 * 3 مم |
|---|---|---|---|
| مرشح مركز الطول الموجي: | 3.8 مم | ثابت الزمن الكهربائي: | 5s |
| إبراز: | pyroelectric flame sensor single channel,infrared photoelectric sensor pyroelectric effect,flame sensor with pyroelectric detection,infrared photoelectric sensor pyroelectric effect,flame sensor with pyroelectric detection |
||

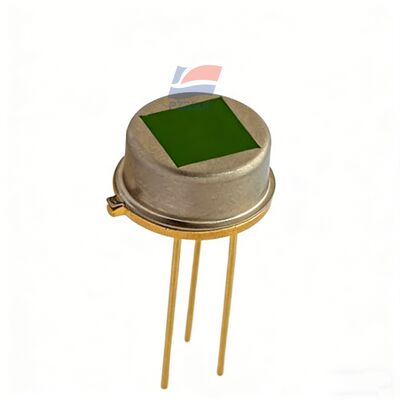

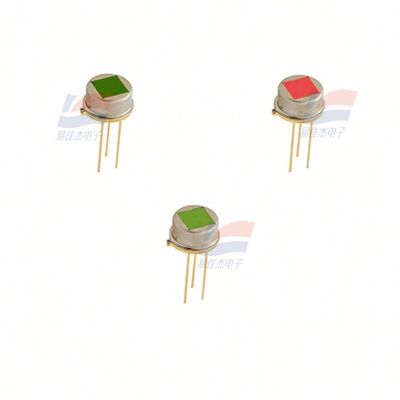

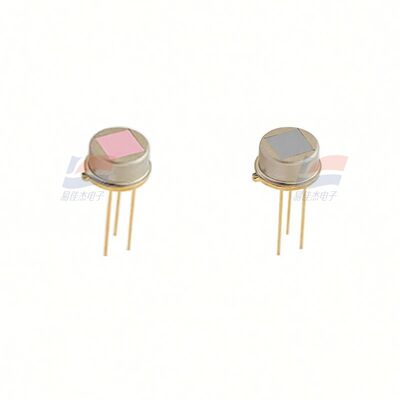

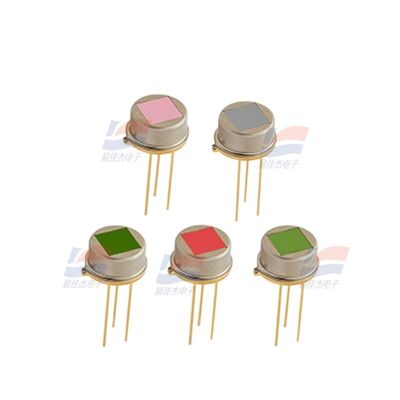

RPFA913CC Pyro Electric Flame Sensor Pyroelectric Effect Single Channel
Application
*It’s widely used in various oil storage stations, large warehouses, factory workshops, forests, charging piles; and standard configuration for high fire risk areas such as petroleum, chemical, paper-making, forests, and garages.
*It also becomes popular in high-end residential, commercial, and general industrial fields.
Features
*3.8um detection band;
*TO-5 package, single channel, voltage mode;
*Low microphone effect, large FOV, high detection rate;
*Detection band measurement of flame signal;
Specification:
|
Thermal time constant
|
200 ms |
| Source Voltage | 0.4~0.7 v |
| Working Voltage | 2~15 v |
| Recommended voltage | 3~5 v |
| Output signal V0 (500K,10HZ,25℃) | 2.0±10% v |
