تفاصيل المنتج:
|
| منطقة حساسة للضوء: | φ1.2 ملم | طَرد: | معدن |
|---|---|---|---|
| فئة الحزمة: | TO-18 | تبريد: | غير مبردة |
| إبراز: | high speed Si PIN photodiode,non-cooled UV photodiode sensor,metal case S5971 photodiode |
||

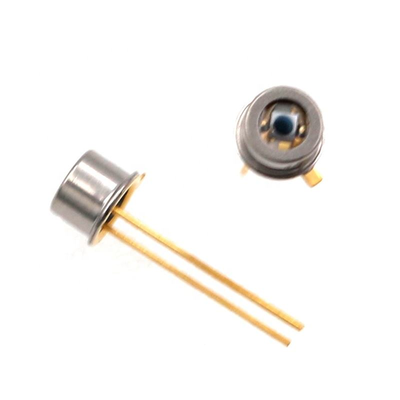

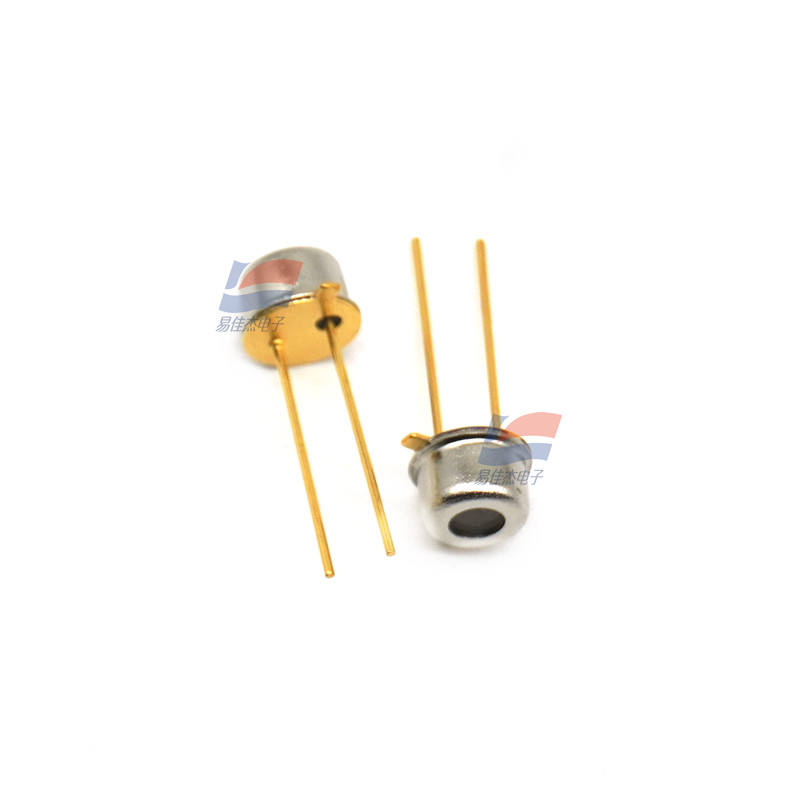

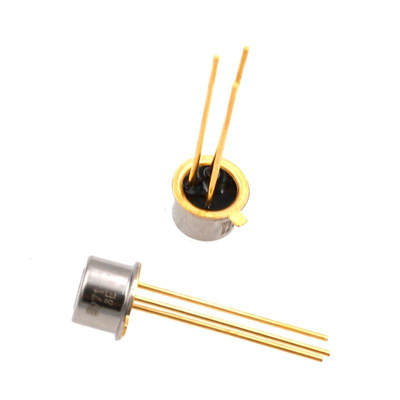

S5971 Si PIN Photodiode High Speed Photodiodes Metal Non-cooled
High-speed response (100 MHz)
The S5971 is a high-speed Si PIN photodiode designed for visible to near infrared light detection. This photodiode provides wideband characteristics at a low bias, making them suitable for optical communications and other high-speed photometry.
Features
- High-speed response: 100 MHz (VR=10 V)
- Low price
- High reliability
Applications
*Optical fiber communications
*High-speed photometry
*Violet laser detection (s5973-02)
Specification:
|
Reverse voltage (max.)
|
20 V |
| Spectral response range | 320 to 1060 nm |
| Peak sensitivity wavelength (typ.) | 920 nm |
| Photosensitivity (typ.) | 0.55 A/W |
| Dark current (max.) | 1000 pA |
| Cutoff frequency (typ.) | 100 MHz |
| Terminal capacitance (typ.) | 3 pF |
| Noise equivalent power (typ.) | 7.4×10-15 W/Hz1/2 |
