تفاصيل المنتج:
|
| إبراز: | MP905 semiconductor gas sensor,flat surfaced air quality sensor,gas sensor with warranty |
||
|---|---|---|---|

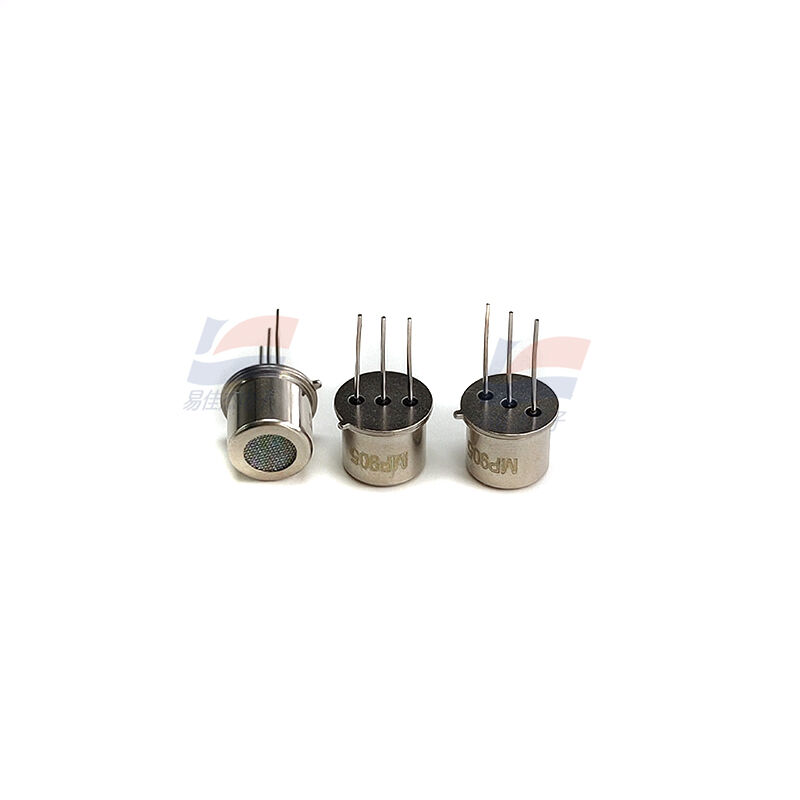

MP905 Air Quality Gas Sensor Semiconductor Flat Surfaced Sensor
MP905 gas sensor is for air quality. It adopts multilayer thick film manufacturing technology. The heater and metal oxide semiconductor material on the ceramic substrate of subminiature Al2O3 are fetched out by electrode down-lead, encapsulated in metal socket and cap. Conductivity of the sensor is affected by the concentration of target gas. The higher the concentration is, the higher conductivity of sensor gets. Users can adopt simple circuit to convert variation of conductivity into output signal corresponding to gas concentration.search and produce air quality monitoring gas sensor for household and office harmful gas detection, automatic exhaust device, air cleaner.
• Detection Gas: benzene,formaldehyde,alcohol,smoke,lighter gas,paints etc
• Detection Range: 0.5～1000ppm(alcohol)
• Application: household and office for harmful gas detection, automatic exhaust device, air cleaner
Specification:
|
Model
|
MP905 |
| Sensor Type | Semiconductor flat surfaced sensor |
| Standard Encapsulation | Metal Cap |
| Detection Gas | benzene,formaldehyde,alcohol,smoke,lighter gas,paints etc. |
| Detection range | 0.5～1000ppm(alcohol) |
