تفاصيل المنتج:
|
| التطبيقات: | جبل المجلس | نوع الضغط: | مطلق |
|---|---|---|---|
| ضغط التشغيل: | 15 رطل لكل بوصة مربعة (103.42 كيلو باسكال) | نوع الإخراج: | جسر يتستون |
| إبراز: | medium low pressure sensor,board mount absolute pressure sensor,electronic pressure sensor with warranty |
||

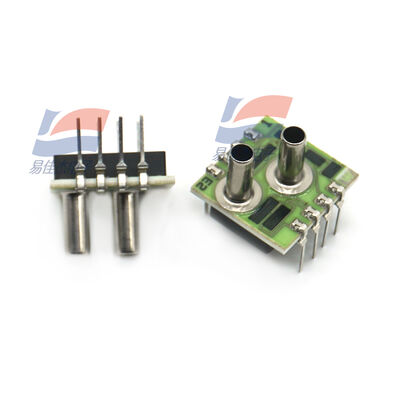

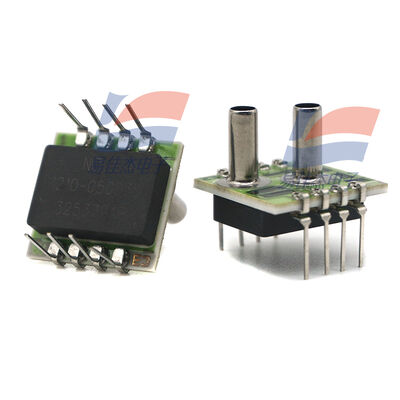

NPC-1210-015A-3S Medium Low Pressure Sensor Board Mount Absolute Type
Features
* High sensitivity
* High accuracy
* Interchangeable
* Temperature compensated 0'C to 60°C (32°F to 140°F)
* PCB mountable package
* DiP package
* Solid-state reliability
* Individual device traceability
Applications
* Industrial automation
* Air flow monitors
* Process control
* Medical equipment
* Underground cable leak detection
* Ventilation
* Respirator monitoring
Specification:
| Accuracy | ±0.1% |
| Port Size | Male - 0.13" (3.23mm) Tube |
| Port Style | Barbless |
| Features | Temperature Compensated |
| Termination Style | PC Pin |
| Maximum Pressure | 45PSI (310.26kPa) |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Through Hole |
| Package / Case | 8-DIP Module |
| Base Product Number | NPC-1210 |
