تفاصيل المنتج:
|
| يتراوح: | 0-10 كيلو باسكال | الإخراج: | نموذجي 50 مللي فولت @ 5 فولت |
|---|---|---|---|
| مزود الطاقة: | الجهد المستمر 5 فولت | مقاومة الجسر: | 5 كيلو أوم ± 1 كيلو أوم |
| إبراز: | unamplified pressure sensor SOP-6,surface-mount pressure sensor XGZP163-101S,electronic pressure sensor with warranty |
||

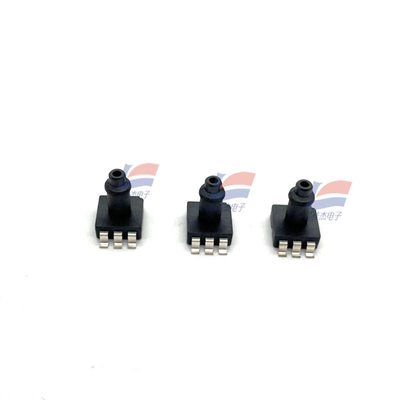

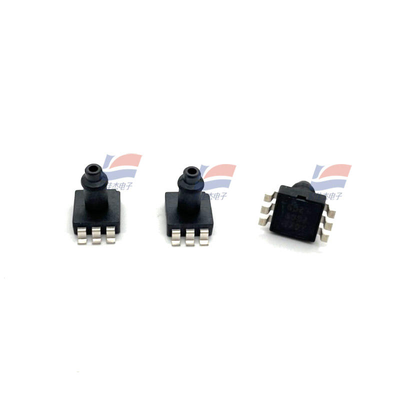

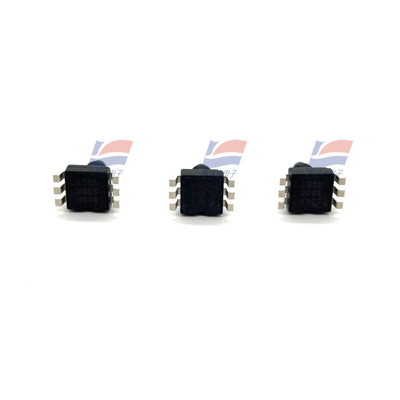

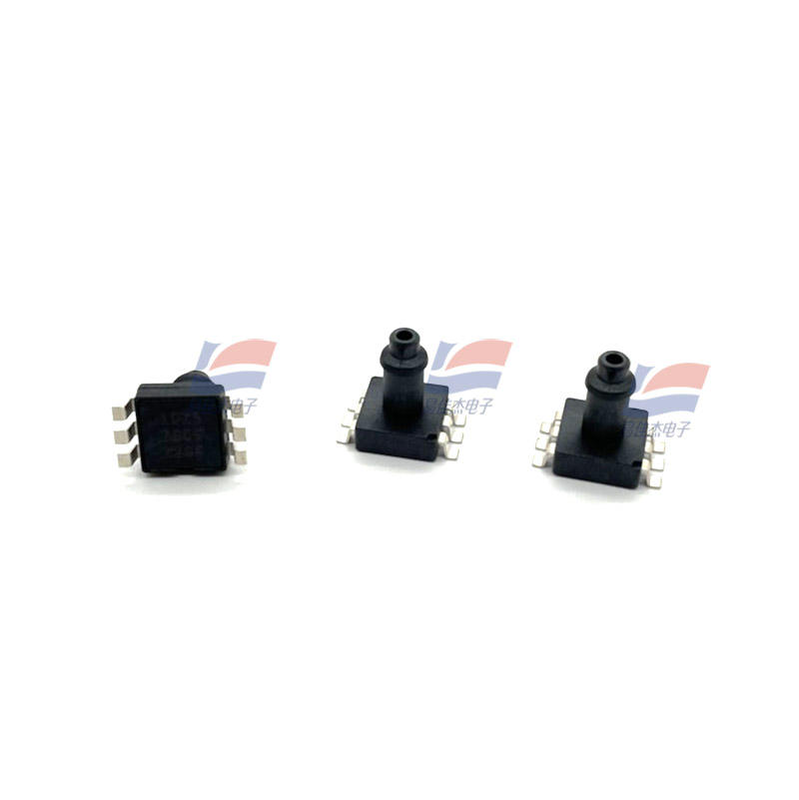

XGZP163-101S Pressure Sensors Unamplified Surface-Mount SOP-6 Packing
The XGZP163-101S is a MEMS piezoresistive gauge pressure sensor featuring a 0–10 kPa measurement range and an SOP-6 surface-mount package with a vertical pressure port. Designed for low cost, compact size, and high stability, it is suitable for low-pressure measurement applications in medical devices and consumer electronics.
Typical Applications
* Medical: Electronic blood pressure monitors, ventilators, oxygen concentrators, patient monitors
* Consumer Electronics: Coffee machines, vacuum cleaners, humidifiers, pneumatic massage devices
* Industrial: Micro air pumps, air pressure monitoring, HVAC, pneumatic control
Specification:
| Zero-point output | -5 to +10 mV |
| Full-scale output | 35 to 65 mV (typical 50 mV) |
| Non-linearity | ≤±0.5% FS |
| Operating temperature | -30°C to +100°C |
| Package | SOP-6; PPS housing; silver-plated copper pins; gold wire bonding; approx. 0.4 g |
| Pressure port | Vertical port with anti-slip design; compatible with φ4 mm tubing |
| Media | Non-corrosive dry air/gas |
