تفاصيل المنتج:
|
| الجهد المقنن: | 15 فولت | القوة المقدرة: | 150 واط |
|---|---|---|---|
| العمل الحالي: | 10 أ | درجة حرارة اللون: | 3100 ك |
| مؤشر تجسيد اللون (CRI): | 100 | فيلم عاكس: | فيلم خفيف بارد |
| نقطة بؤرية: | البعد البؤري القياسي H5 | القطر الخارجي: | 50 ملم |
| إبراز: | YJJ JCR 15V150WH5 halogen bulb,halogen bulb for endoscope light source,gastro-intestinal endoscope cold light bulb |
||
Product Description:

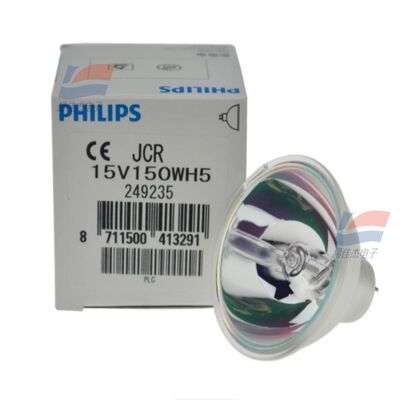

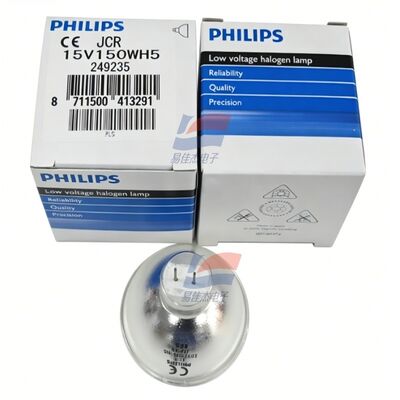

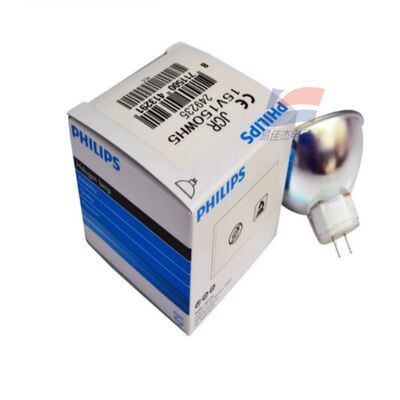

YJJ JCR 15V150WH5 Halogen Bulb for Long-Life Gastro-Intestinal Endoscope Cold Light Source 249235
Features:
Basic Information
Model: JCR 15V150WH5
Material Number: 249235
Product Type: MR16 Reflective Cup Halogen Lamp
Electrical Parameters
Rated Voltage: 15 V
Rated Power: 150 W
Working Current: 10 A
Optical Parameters
Color Temperature: 3100 K
Color Rendering Index (CRI): 100
Reflective Film: Cold Light Film, Reflects Infrared Light Backward, Low Temperature on Light Emitting Surface
Focus: H5 Standard Focal Length (Compatible with Fiber Optic Cold Light Source)
No Ultraviolet Leakage, Suitable for Optical Inspection Equipment
Physical Dimensions
Lamp Base: GZ6.35 Double Pins
Outer Diameter: 50 mm
Total Length: 42 mm
Installation Position: BDH, Downward Installation Allowed ±90°
Service Life
Rated Average Life: 500 h Application scope
Fiber optic cold light source, endoscope light source, microscope, optical projector, AOI equipment, dental lighting, slit lamp instrument
Compatible alternatives
KLS JCR 15V150WH5, with fully interchangeable mounting position, focal length, and electrical parameters
Specifications:
| Installation position | BDH |
| Total length | 42 mm |
| Outer diameter | 50 mm |
| Lamp holder | GZ6.35 double-pin |
| Focal point | H5 standard focal length |
