تفاصيل المنتج:
|
| تدفق: | من 0 إلى 30 لتر/دقيقة | مساحة ميتة: | 1.3 مل (وظيفي) |
|---|---|---|---|
| مقاومة: | <0.17 CMH2O/(l/min) أكثر | وزن: | تقريبا. 9 جم |
| مادة: | يتوافق مع ISO 10993-1: 2009 | دقة: | لمستشعر التدفق المعايرة |
| إبراز: | Haimont ventilator flow sensor,medical air flow sensor,proximal flow sensor with warranty,medical air flow sensor,proximal flow sensor with warranty |
||
Product Description:

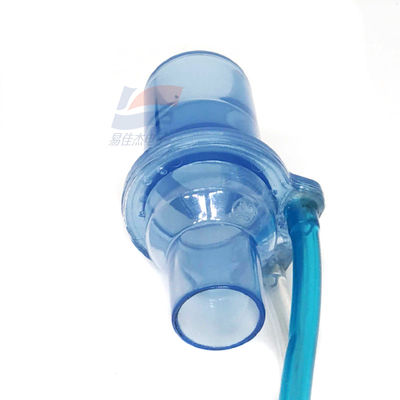

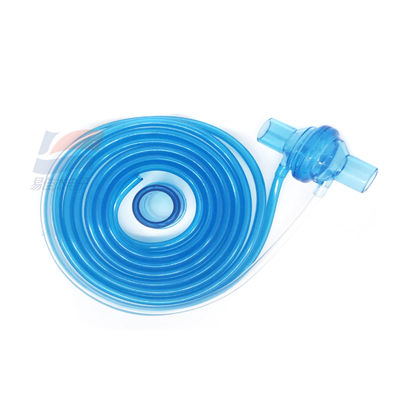

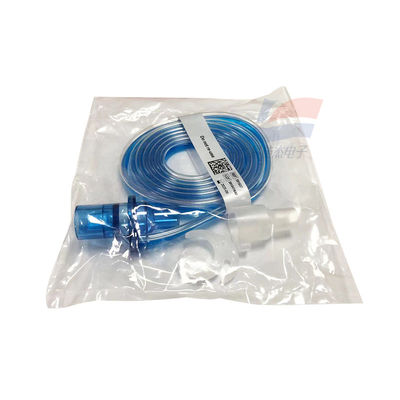

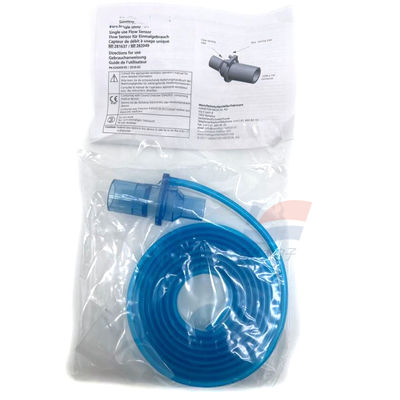

YJJ PN 281637 PN 282049 PN 282051 - Proximal Flow Sensors Are Suitable for Haimont Medical ventilators
Features:
Diameter (ID, OD [mm]) / Description
Material
1 Connector OD15, ventilator side PSU
2 Tubing-PVC
3 Connectors for tubing Differential pressure measurement PSU
4 Direction index--
5 Individual serial number--
6 Connector OD22/ID15, patient sidePSU
7 Flap-PET Details Flow range 0 to 180 l/min (short term 260 l/min) Dead space
< 11 ml (functional)
Resistance
< 0.027 cmH2O/(l/min) over the complete flow range (-180 l/min to 180 l/min)
Weight
Approx. 14 g without tubes, 68 g with 188 cm tubes, 89 g with 260 cm tubes, 110 g with 330 cm tubes
Material
Complies with ISO 10993-1:2009 (biocompatibility) and Directive 2011/65/EU (RoHS).
Does not contain natural rubber latex, DEHP, or BPA.
Accuracy
For calibrated flow sensor volume-related parameters:
HAMILTON-C1/T1/MR1/C2/C3/C6 ventilators: ± 10% or ± 10 ml (whichever is greater)
HAMILTON-G5/S1 ventilators: ± 15% or ± 20 ml (whichever is greater)
Specifications:
| Temperature |
Operating: -20°C to 50°C (-4°F to 122°F) Storage: -20°C to 60°C (-4°F to 140°F) |
| Operating time | 28 days or depending on hospital infection control protocols, patient secretions, and nebulization of medication |

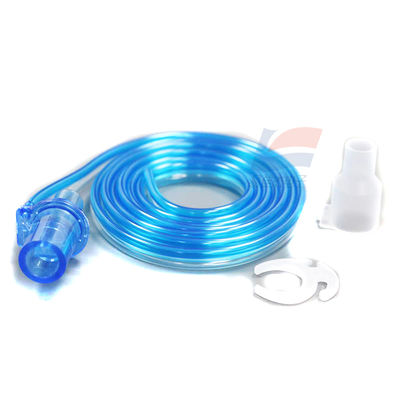

| Accessory | Tube clip, calibration adapter ID22 / OD15 |
| Identification | Individual serial number |
| Regulatory | Hamilton Medical has established and applies a quality management system and fulfills ISO 13485 and ISO 9001. The flow sensor has been designed to comply with: Medical Device Regulation (EU) 2017/745, EN 980, EN 1041, ISO 5356-1, ISO 10993-1, ISO 14971 |
