تفاصيل المنتج:
|
| نطاق الجهد الإدخال: | 8 - 15 فولت تيار مستمر | معدل تدفق حجم الغاز: | 0.0011 قدم مكعب في الدقيقة |
|---|---|---|---|
| جهد الخرج: | 5 فولت تيار مباشر | مقاس: | 9.1 × 3.9 × 1.7 ملم |
| نطاق درجة حرارة التشغيل: | -25 درجة مئوية إلى 85 درجة مئوية | صفر الانجراف: | ±0.025% قراءة |
| إبراز: | medical respiratory gas flow sensor,pulmonary function testing flow sensor,large-scale micro-bridge air sensor,pulmonary function testing flow sensor,large-scale micro-bridge air sensor |
||
Product Description:

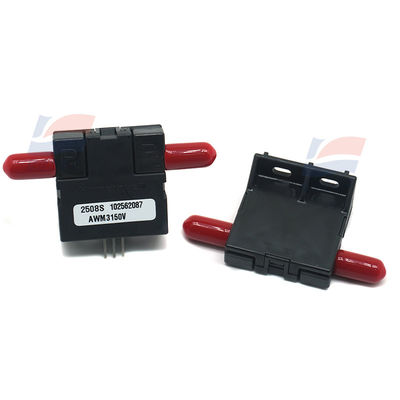

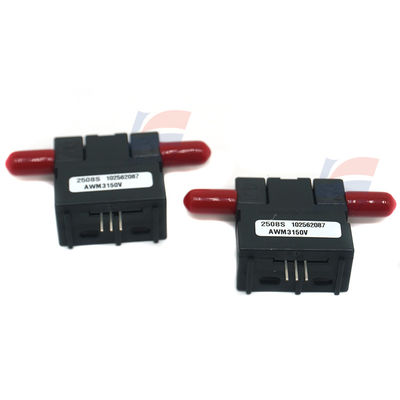

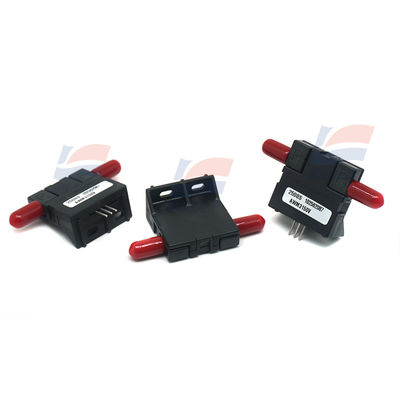

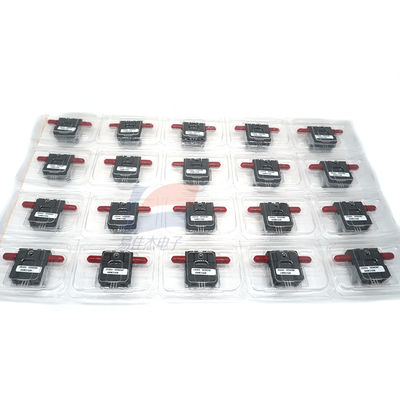

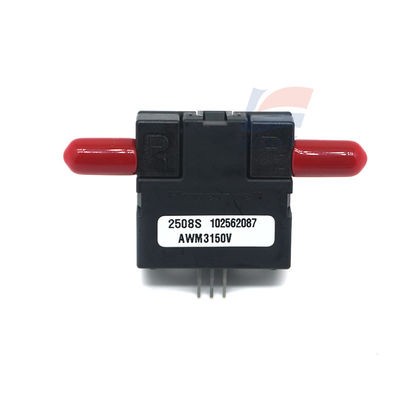

YJJ AWM3150V Large-Scale Micro-Bridge Gas Flow Sensor Used For Medical Respiratory And Pulmonary Function Testing
Features:
Main parameters of the AWM3150V flow sensor are as follows:
Operating voltage
Input voltage range: 8 - 15 V DC
Flow range
Gas volume flow rate: 0.0011 SCFM (approximately 0.0018 m³/h)
Output signal
Output voltage: 5 V direct current
Physical dimensions
Size: 9.1 × 3.9 × 1.7 mm
Working temperature
Operating temperature range: -25°C to 85°C
Other characteristics
Response time: 6 ms (typical value)
Zero drift: ±0.025% reading
Repeatability error: ≤ 0.35% of the reading
Note: This sensor is only suitable for gas measurement and cannot be used for liquid flow detection.
AWM3300V Flow Sensor AWM3100V Large inventory AWM3100V Environmental Climate Control - Flow sensor AWM3150V Large inventory
AWM2000 non-amplified micro bridge gas flow sensor series
AWM3000 amplified micro bridge gas flow sensor series
AWM40000 non-amplifying micro bridge gas flow sensor series
AWM5000 large flow amplification micro bridge gas flow sensor series
AWM700 series gas mass flow sensor
FRN Series Low flow, low pressure drop flow switch
AWM90000 series mass air flow sensor
Features of the AWM3100V flow sensor
Flow tubes are used in ranges up to 200 SLPM
Zero and full scale stability is high
Compact package design
Lag and repeatability errors are minimal, less than 0.35% of the reading
Fast response time, usually 6 ms
Low power consumption, less than 60 mW
AWM3100V Flow sensor application
Oxygen tank
Medical respiration apparatus and spirometer
atomizer
Continuous positive airway pressure (CPAP) equipment
Anesthesia system
Leak detection
spectrum
Mass flow controller
Telecommunication system
Environmental climate control
Fuel cell control
Oxygen generator
Specifications:
| Signal conditioning | amplification |
| Flow/pressure range | 30.0 sccm |
| Adjust the output voltage at the point | At 25 SCCM, 3.4 VDC |
| Output temperature drift | The plus or minus 5% reading |
