تفاصيل المنتج:
|
| وقت الاستجابة: | T90 <3 ث | يتراوح: | 0 - 25 SLPM |
|---|---|---|---|
| دقة: | ± 3 ٪ fs | الإخراج: | RS485 - مودبوس - RTU |
| مزود الطاقة: | 9 - 24VDC | عرض: | الجزء المدمج |
| واجهة: | الموضوع الافتراضي NPT3/8 | مادة: | مسار الغاز من سبائك الألومنيوم 6061 |
| إبراز: | digital gas mass flowmeter medical,intelligent flowmeter 0-25SLPM,medical air flow sensor |
||
Product Description:

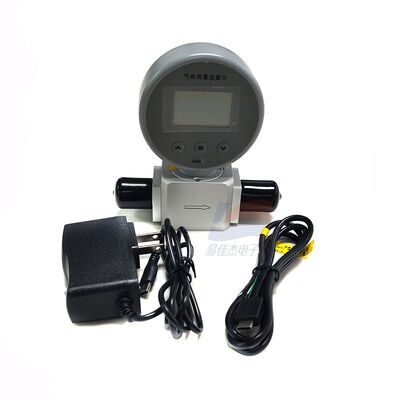

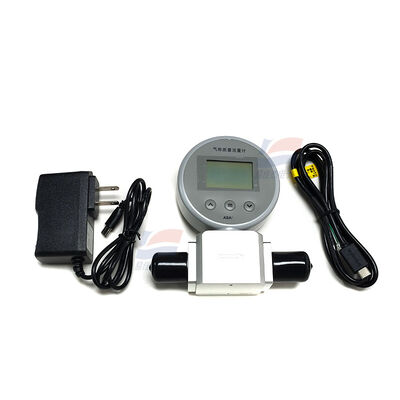

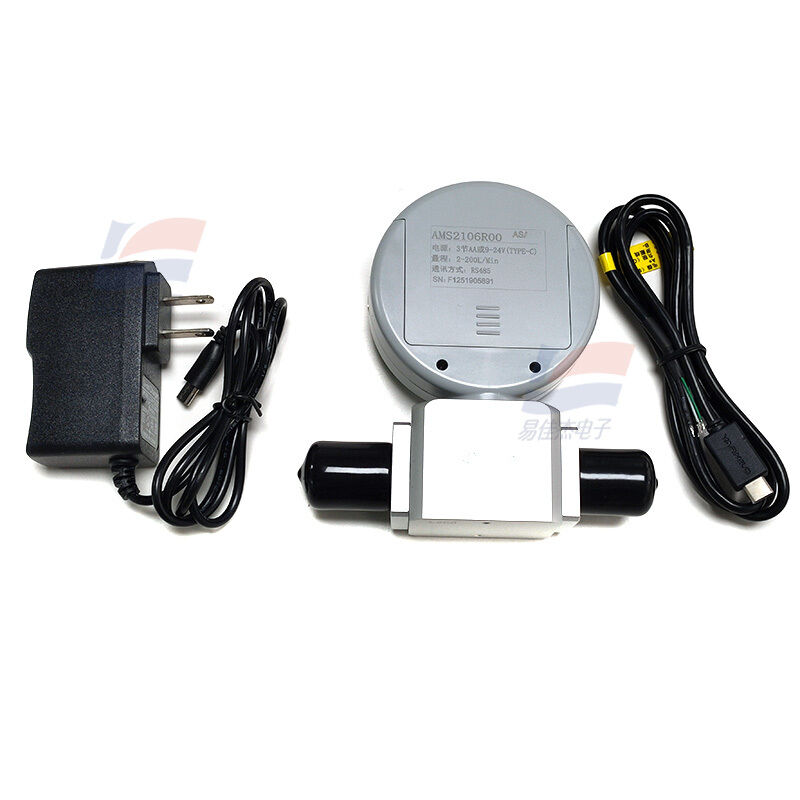

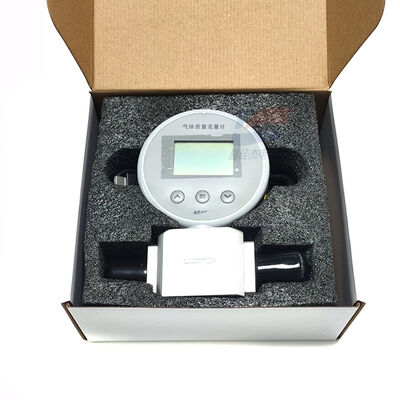

YJJ AMS2106-R00 0-25SLPM Intelligent Digital Gas Mass Flowmeter Medical Field
Features:
I. Basic Information
Brand: ASAIR (your current core domestic supplier)
Model: AMS2106-R00
Principle: MEMS thermal mass flow measurement, directly measures mass flow, no need for temperature and pressure compensation
R00 meaning: Basic general model, standard range, RS485-Modbus-RTU communication output
Measured gases: air, nitrogen, oxygen, argon, CO₂, etc., clean and dry non-corrosive gases
II. Core Technical Parameters
Range: 0~25 SLPM (standard liters per minute)
Accuracy: ±3%FS; repeatability ≤ 0.5% FS; range ratio 50:1
Output: RS485-Modbus-RTU, supports instantaneous flow + cumulative flow reading
Power supply: 9~24VDC direct current; built-in lithium battery for offline use
Display: Built-in segment display, real-time display of instantaneous flow, cumulative flow, medium temperature
Interface: default NPT3/8 thread, customizable G thread
Material: 6061 aluminum alloy gas path, lightweight, corrosion-resistant
Working pressure: maximum 0.8MPa
Working temperature: -10℃~+60℃
Response time: T90 < 3s, rapid capture of flow rate changes
Additional functions: over-range alarm, multi-gas switching, key parameter configuration, 180° rotating display
III. Main Applications
Research laboratories: gas ratioing, precise monitoring of gas path flow in experiments, university gas experiments
Medical industry: oxygen flow measurement for oxygen generators, respiratory machines, medical gas flow control
Industrial manufacturing: nitrogen protection welding, nitrogen packaging, gas protection, gas flow control for welding / cutting
Environmental monitoring: exhaust gas sampling, smoke gas detection, air sampling pump flow calibration
Smart agriculture / food: gas-controlled preservation, fumigation gas monitoring, fermentation process gas flow control
Analytical instrument accessories: chromatographs, gas detectors, analytical instrument gas path flow monitoring
Specifications:
| Range | 0 - 25 SLPM |
| Accuracy | ±3% FS |
| Output | RS485 - Modbus - RTU |
| Power supply | 9 - 24VDC |
| Display | Built-in segment |
